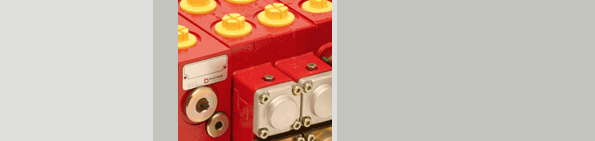

Sectional directional valves, series L.8S

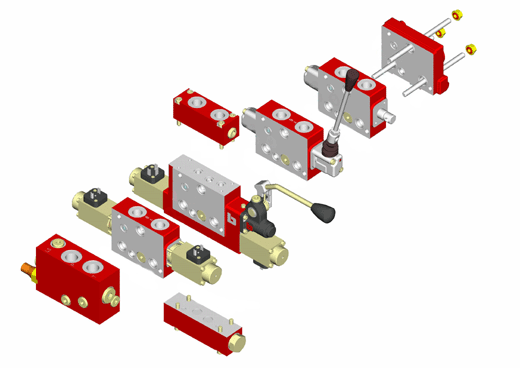

The L.8S series of valves is an adaptable building-block system. The individual elements needed to meet the system requirements are selected, and are then assembled together to form a complete valve block.

The valves were developed for mobile applications and are particularly characterized by their robust design and compact dimensions. For building complete valves, the following types of sections are available:

• Block termination elements

   - inlet sections

   - end sections

• Intermediate sections

   - 2-way compensators (hydrostats)

   - 3-way compensators (hydrostats)

   - multi-way compensators (hydrostats)

• Directional sections with the following auxiliary valves

   - check valves

   - secondary pressure relief + make-up check valves

   - individual 2-way compensators (hydrostats)

Advantages

• Electro-hydraulic proportional operation

• Load Sensing-capable

• Can be used with any type of pump, and in systems where the oil supply source changes

• Load-compensated flow control, even with parallel operation of several actuators

• Adaptable building-block system, specially designed for applications in mobile hydraulics

• Types of valve operator: hand lever / cable / on-off solenoid / proportional solenoid / pneumatic and hydraulic control

Technical data

Unit

Value

Nominal flow rate, max.

Acutator flow rate, max.

Inlet pressure, P + D

Acutator pressure, A + B

Intermitt. pressure (max. 10 sec/min)

Tank line pressure

Voltage

l/min

l/min

bar

bar

bar

bar

V

140

90

315

315

330

210

12 or 24

Types of functions

1. 3-way compensator for fixed-displacement pump, with 2-stage relief function for the pump flow
2. Bottom-mounting individual compensator for load-independent parallel operation
3. Direct-acting proportional valve with integral carry-over of the actuator flow to the end section
4. Leak-free load-holding check valve with integral secondary pressure relief + make-up check valve
5. 2/2 seat valve for the float function

Applications

• Mini-tractors
• Wheeled loaders
• Harvesters
• Forage wagons
• Highway finishers/pavers
• Ground drilling rigs

• Farm loaders
• Fire-fighting equipment
• Forestry machines
• Road rollers
• Municipal vehicles
• Construction machines
