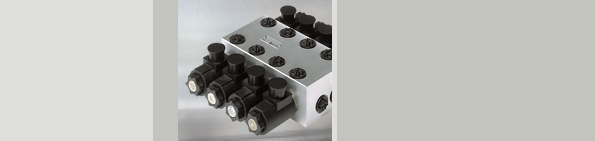

Directional seat valve blocks, WSH03

These directional seat valve blocks are supplied as aluminium monoblocks with a maximum of 5 actuator ports. These valve blocks are used in all situations where the actuator - either single- or double acting - must provide the highest levels of leak-tightness.

Advantages

• Near-zero leakage
• Light-weight construction
• Compact
• Economical

Technical Data

Unit

Value

Flow rate

Operating pressure

Power consumption

Max. leakage at 100 bar
and viscosity 35 mm²/s

Voltage

Viscosity range

l/min

bar

W

mm³/min


V

mm²/s

25

210

17/ 27

4


12/24

10 bis 300
