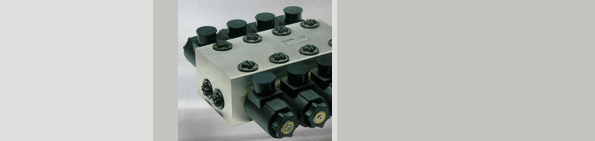

Seat valves, SVH04

These low-weight (aluminium) seat valve blocks are used to control single- or double acting cylinders. They are applied where high levels of leaktightness are required.The design uses a solenoid operated, direct acting, 2/2 bi-directional seat valve. They close the flow path to or from hydraulic actuators with virtually zero leakage.

Advantages

• Zero leakage
• Light-weight construction
• Compact
• Economical

Technical Data

Unit

Value

Flow rate

Operating pressure

Oil temperature

Viscosity range

Voltage

Power consumption

l/min

bar

°C

mm²/s

V

W

20

210

-20...+80

10-300

12/24

27

Models

Intermediate sections

End sections

Applications
