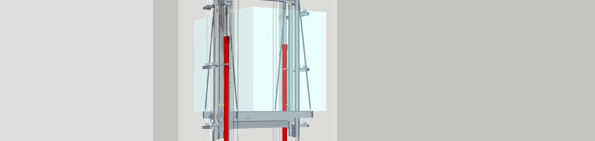

Jupiter the car frame

Our tandem car frames (1:1 or 2:1 sling) are specifically designed for goods elevators with load capacities up to 9’000 kg (cf. EN 81-Tab. 1.1).

The 2:1 systems are delivered with car frame, base elements with buffers, guide rails, rail brackets, cylinder pillars, cylinder clamps, diverter pulleys, suspension ropes and governor set.

Advantages

• Simple construction

• Planning support with project specific drawings in dxf/dwg format

• Easy, rapid installation

• Easy access to main components

• Excellent stability under heavy loading conditions

• 3-Point supporting of platform

• Suitable for fork lift



Ausführungen

• 1:1 System: BT1-40, BT1-50, BT1-60, BT1-75, BT1-90, BT1-150.
• 2:1 System: BT2-40, BT2-50, BT2-60, BT2-75, BT2-90, BT2-120.

• Diagonal or in-line ram arrangement

• Various options available upon request

Technical data

Specification

Total load*

Distance between guide rails

Car depth

Travel height

kg

mm

mm

m

2:1 up to 12 000

1:1 up to 15 000

variabel

up to 3 500

up tp 8 000

up to 25

*Total load = related load + cabin weight + frame weight
