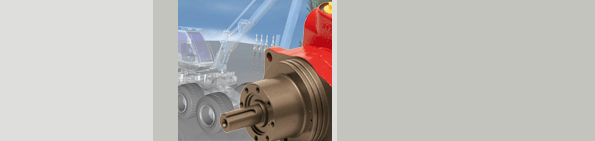

Internal-Gear Motor, Series QXM-HS

The QXM-HS (High Speed) internal-gear motor was developed specifically for use at extremely high speeds. Its first-rate efficiency and extremely low noise levels also make a significant contribution to reducing the costs of both energy and anti-noise measures.

Thanks to the special motor flange, adapted for such applications, and the integral ports for auxiliary functions, the motor can be used in many applications without needing any further modification.




Advantages



  • Particularly suitable for high speeds

  • Very low hydraulic and mechanical losses

  • Can carry high external radial loads

  • Low noise levels

  • Cost-savings in system design, assembly and maintenance




Technical Data





Unit

Value

Max. continuous pressure

Peak pressure

Geometric displacement

Speed, max.

Speed, min.

Viscosity range



bar

bar

cm³/rev

rpm

rpm

mm²/s (cSt)

240

280

20, 25, 32

10500

100

15 - 1000



Applications



  • Saw-drive motor in forestry harvesters

  • Fan drives in mobile machines
