Proportional Directional Valves, Series LVS

With the LVS hydraulic valve, designers can now create those mobile-machine control systems that previously have been difficult to master. Its consistent design as a system of valve modules means exceptional adaptability.

The integral auxiliary functions and high power density make the LVS not only a highly adaptable modular valve, but also a very compact one. LVS valve blocks can be configured for both fixed- and variable-displacement pumps.




Advantages

  • Savings in energy costs due to low pressure losses.

  • Reliable supply of flow, because the proportional flow-sharing principle ensures that all functions can be operated even in the under-supply zone.

  • Oscillation-stable even in critical applications, preventing machine breakdowns.

  • One valve-block solution for all pump systems.




Technical data







LVS08

LVS12

Nominal flow rate in the block, max.

Acutator flow rate, max.

Inlet pressure, P

Actuator pressure, A + B

Tank line pressure, max.


Viscosity range

Voltage

l/min


l/min

bar

bar

bar


mm²/s (cSt)

V DC

180


50

250

280

200


10 - 380

12 or 24

180


180

350

380

40
(opt. 200)

10 - 380

12 or 24

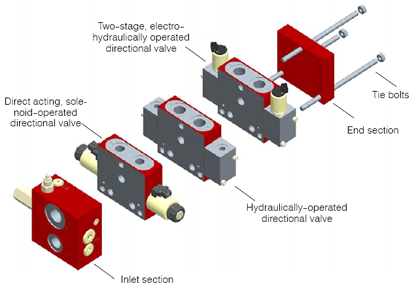

Types of functions



  • Inlet sections

   - pressure relief

   - 3-way pressure compensator

   - priority function


  • Directional sections

   - direct-acting solenoid, ON/OFF

   - direct-acting sol., proportional

   - hydraulically operated

   - two-stage, electro-hyd. operated

   - flow-control functions

   - pressure compensator

   - secondary PR and make-up valve

   - seat valve

   - manual override

   - lift/lower valve




Applications


  • Agricultural equipment
  • Construction machines

  • Materials handling equipment

  • Lifting technology

  • Municipal equipment


  • Road building

  • Forestry machines

  • Fire-fighting equipment

  • Tunnel engineering
