Internal & External Aluminum Extrusion Mount

The new Internal and External Extrusion Mount quickly converts a fixed structure or OEM design to one with a 0-16" range of height adjustment with either manual (hand crank) or electric actuation.

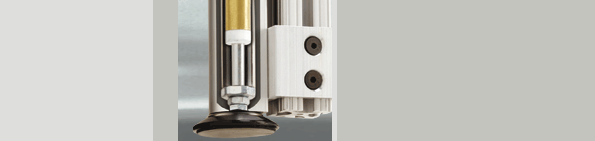

External Leg Assembly

• Retrofit the “D” style cylinder to any size extrusion via the Dyna-Lift “L” Bracket (Part #DH-08000).
• Dyna-Lift “L” Bracket universally fits many different brands and sizes of extruded aluminum profiles via the T-Slot.
• Simply tighten down the Dyna-Lift “L” Bracket to the T-Slot with an Allen wrench.
• Easy installation as an OEM design or as an add-on retrofit to a pre-existing structure.

Internal Leg Assembly

• Easily mounts inside most 2"x 2" and 3"x 3" extruded aluminum profiles.
• Internally mounted cylinder neatly hides away unwanted outside obstructions.
• Perfect application for OEMs and Custom Machine Builders.

Technical Data

• Adjustment ranges available in: 6", 8", 10", 12", 14", and 16" stroke.
• Lifting capacities up to 1,500 lbs (with a Heavy Duty Dyna-Lift).
• Single acting cylinders, power up and gravity down. Approximately 20 lbs. of weight per cylinder to retract properly.
