Telescoping Leg Assembly (TLA)

The Telescopic Leg Assembly (TLA) is specifically designed to provide optimum form and function for industry specific ergonomic height adjustable needs.

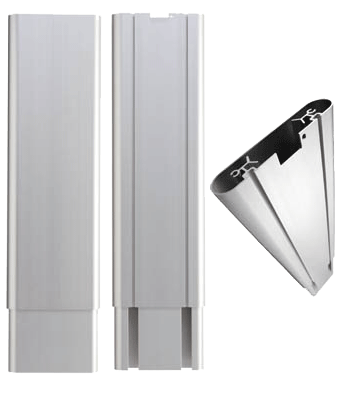

The two piece anodized aluminum extrusions were engineered to work in tandem with each other to provide smooth, quiet, rigid height adjustability regardless of off-center or cantilever loads.

The TLA. allows Original Equipment Manufactures to easily integrate the columns into custom applications. Simply bolt on your top and bottom frame with cross member, then add your table top.

The TLA offers the perfect height adjustable solution for your ergonomic OEM design!

Technical Data

• Materials: extruded aluminum with clear matte anodized finish
• Adjustment range:
  • 12" (305 mm)
  • 24" (610 mm) full retracted
  • 36" (914 mm) fully extended
• Capacity: 250 lbs per column and 500 lbs per set of 2 columns
• Multiple columns available
• Designed to be used with B1C cylinders
• Manual (hand crank) or electric actuation

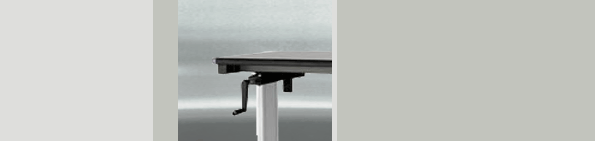

The adjustment of the new Telescoping Leg Assembly (TLA) is as easy as turning a crank handle for manual installations to pressing a button for electric actuations.

Typical Applications

• Office
• Medical
• Light Industrial
