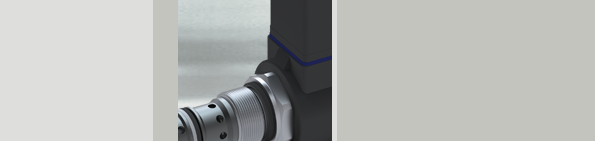

Proportional flow-control cartridge, series MVRPLSA

The two-stage proportional flow-control cartridge in this series guarantees outstanding load-holding function thanks to leak-free design and load-independent lowering.

The new principle makes it possible to combine several functions in one valve. On the one hand, the leak-free nature is preserved thanks to the ingenious seat design, which shuts off the main and control functions simultaneously and with zero leakage, allowing loads to be held in position for long periods. On the other hand, the integral pressure-compensator function enables responsive, controlled and load-independent lowering.

These unrivalled features are all-important for the economic and convenient handling of loads of all kinds.

Advantages

• Seat-valve shut off from 2 to 1
• Load-independent flow rate
• Multifunction cartridge with compact design
• Very good reproducibility
• More reliable operation over the whole pressure and flow range

Technical Data

Unit

Value

Max. flow rate

Max. operating pressure

Nominal flow rate

Leakage flow rate

Supply voltage

Protection class

l/min

bar

l/min

cm³/min

V DC

25

250

20 at Δp 15 bar

< 0,2

12 or 24

IP65 / IP67

Symbol
