Low power consumption

8 Watt solenoid coils



"Direct operated via PLC or bus controller"



Bucher Hydraulics has several model ranges of "low-watt" valves that feature very low power consumption thanks to their 8-watt solenoid coils. This provides enormous benefits when valves are operated directly by a PLC or bus controller. By connecting a valve directly to the PLC (Programmable Logic Controller), no other electrical components (such as relays, etc.) are necessary. The low power consumption involved in operating a valve allows several valves to be controlled with a standard PLC controller. These valves save energy, protect the environment and reduce operating and investment costs on a permanent basis.



A Focus on Applications



High-pressure valves with a "low watt" design are the right choice for all projects in which low electrical power consumption combined with a high level of energy efficiency are vitally important.

2/2 seat valves with 8-watt coils are used as pilot valves in the size 16 family of products, for example. This enables very high performance in a variety of functions, as well as low power consumption.



Model ranges / symbols



High-pressure valves for direct mounting in systems or for use
as pilot valves

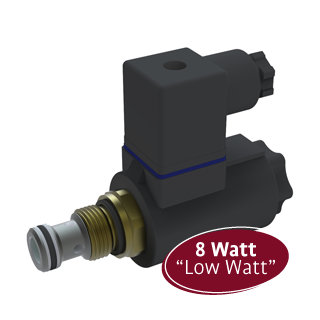

2/2 solenoid cartridge seat valve
Bidirectional seat-valve shut-off




3/2 solenoid cartridge spool valve




4/2 solenoid cartridge spool valve




Technical Data


Characteristics

Max. operat. pressure pmax

Max. flow rate Qmax

Design

Cavity type

Mounting method

Values, Units

420 bar

5 l/min

direct acting

AL, AM, AN to Bucher Standard

3/4−16 UNF




Important Features

  • Straightforward design delivers good price/performance ratio

  • High pressure wet-armature solenoids with rotatable slip-on coil

  • Various plug-connector systems and voltages are available

  • Some models available with manual override

  • All external parts zinc plated, chromited (CrVI-free)

  • Can be fitted in a line-mounting body




Your Benefits

  • Permanently lower operating and investment costs thanks to higher energy efficiency
  • Connect directly to a PLC (Programmable Logic Controller)
  • Save the cost of extra electrical components
  • Simple system integration thanks to high functional stability
  • Great durability with no need for time-consuming maintenance work
