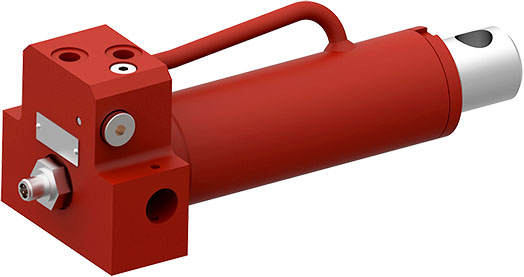

Cylinder for Quick Hitches

Quick-hitch cylinders are incorporated in the steelwork of the attachment-change devices on wheel loaders. They bolt and unbolt the attachment. The heavy-duty design ensures a long service life

  • Very reliable anti-leakage features
  • Robust construction
  • For use under the harshest conditions
  • Low-temperature service
  • Good cost-effectiveness for the customer
Piston diameter
mm		 Rod diameter
mm		 Stroke length
mm		 Operating pressure
bar
40…50 25…28 2 x 55…60 250

The above details are guideline values taken from previously developed products. If your requirements do not fit into this framework, we will find the best solution for your application.

  • Cylinder incorporated in the steelwork
  • Single or dual double-acting cylinders
  • Attachment-change device on wheel loaders
