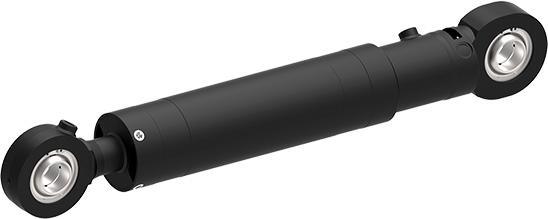

Gripper Cylinders

Our gripper cylinders are used in two- and multi-tine grabs for material handlers. These cylinders feature the robust and fail-safe design that the harsh application requires. The piston rods used are induction hardened and, where needed, the cylinders are equipped with cushions.

Very reliable anti-leakage features
Consistent, temperature-independent, material-friendly damping
Visually appealing and robust construction
For use under the harshest conditions
Low-temperature service
Long bearing life
Good cost-effectiveness for the customer

Piston diameter mm	Rod diameter mm	Stroke length mm	Operating pressure bar	Port sizes
60…110	45…60	400	500	unrestricted

The above details are guideline values taken from previously developed products. If your requirements do not fit into this framework, we will find the best solution for your application

Double-acting cylinder
Model with integral lock valves, tailored to the application
With optional version for low-temperature service
Optional cushioning at both ends
Rod options: induction hardened and hard-chrome-plated to size or nickel-chrome plated
Robust protective tube as rod protection

Multi-tine grabs on material handlers
