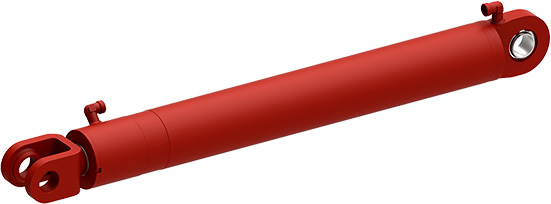

Lift/tilt Cylinders

Lift and tilt cylinders are used to move the bucket in wheel loaders. These cylinders are subjected to high dynamic loads and therefore need to be designed and built for extremely heavy-duty service.

  • Very reliable anti-leakage features
  • Consistent, temperature-independent, material-friendly damping
  • Visually appealing and robust construction
  • For use under the harshest conditions
  • Low-temperature service
  • Long bearing life
  • Good cost-effectiveness for the customer
  • Heavy-duty design with smooth radius transitions
Piston diameter
mm		 Rod diameter
mm		 Stroke length
mm		 Operating pressure
bar
65…120 40…60 400…730 300

The above details are guideline values taken from previously developed products. If your requirements do not fit into this framework, we will find the best solution for your application.

  • Double-acting cylinders
  • With optional version for low-temperature service
  • Optional cushioning at both ends
  • Rod options: induction hardened and hard-chrome-plated to size or nickel-chrome plated
  • Wheeled loaders
