System Solutions for Crane Controls

The Crane Control system includes highly adaptable and modular solutions for all challenges in the area of electrohydraulic systems for crane applications.

As well as customized valve block solutions together with electronic operating/control units, the Crane Control program also features package solutions with proven and configurable components.

The components are marked out by their reliability in the face of variations in temperature, severe mechanical stresses and electromagnetic interference.

Using our components, exacting demands on the dynamics and stability of the crane movements can be met in a precisely targeted manner.

System Solutions for Crane Controls
  • Modular and application-optimized system solution
  • USB interface for easy upload of software and parameters
  • Downstream pressure compensators for flow sharing during under-supply
  • Excellent dynamics in single and parallel operation
  • Can be added to for stabilizers, or expanded functionality
  • Parametrization is optimized for the operator
  Type File extension Size
Systemlösung-Kransteuerung_100-P-000169-en Catalog / Data sheet PDF 1.0 MB

The components are marked out by their reliability despite variations in temperature, severe mechanical stresses and electromagnetic interference.

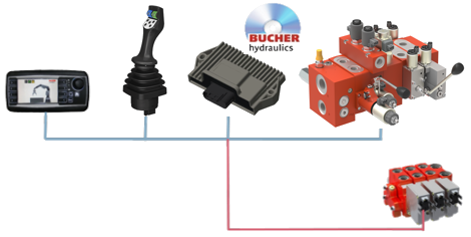

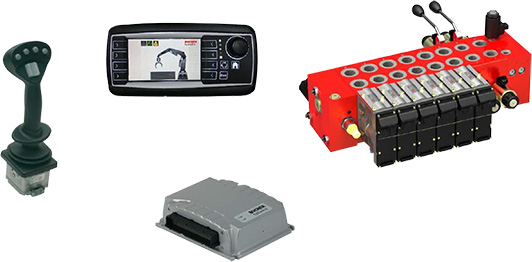

  • Proportional directional valve system with On-board Electronics, Two-stage electrohydraulic operation and ON/OFF operation.
  • Joystick
  • Master board
  • Crane terminal
  • Forestry cranes
  • Skidders
  • Forwarders
  • Truck cranes
  • Material Handling
