Check Valves for SAE Flanged Connections,
Fit Between Port and Flange, Sealing on Both SidesRVSAE 3/6DS

Series RVSAE 3/6DS
Patent No. 38 34 066

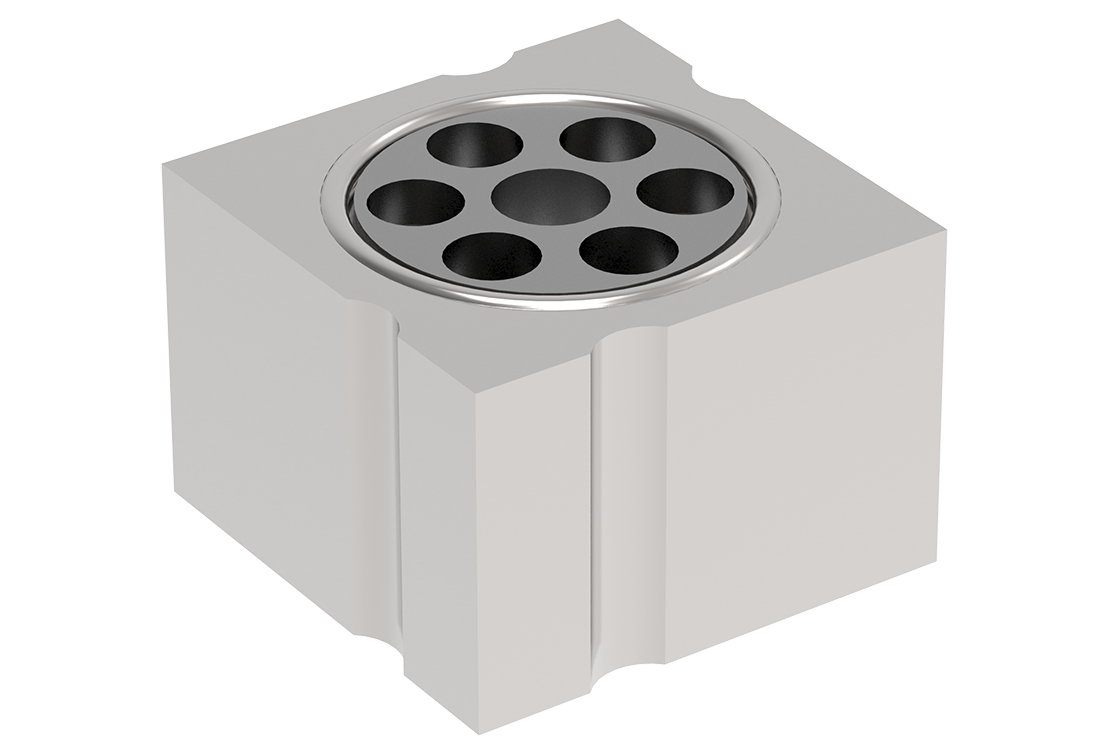

These patented combination SAE check valves are centered between the shafts of the four SAE flange bolts. This results in a simple, compact assembly.

Check Valves for SAE Flanged Connections, <br />Fit Between Port and Flange, Sealing on Both SidesRVSAE 3/6DS
  • High pressure rating
  • Virtually zero leakage
  • Compact construction
  • Same valve body for 3000 psi and 6000 psi
  • Same valve body for check directions A-to-B and B-to-A
  • Optional orifice-bleed in check direction
Type Nominal sizes
 Opening pressures
bar		 Flow rate, max.
l/min		 Operating pressure, max.
bar
RVSAE3/6DS-34 SAE 3/4" 0.2 / 0.5 / 1.0 / 2.0 / 4.0 250 420
RVSAE3/6DS-1 SAE 1" 0.2 / 0.5 / 1.0 / 2.0 / 4.0 400 420
RVSAE3/6-DS-114 SAE 1 1/4" 0.2 / 0.5 / 1.0 / 2.0 / 4.0 600 420
RVSAE3/6DS-112 SAE 1 1/2" 0.2 / 0.5 / 1.0 / 2.0 / 4.0 800 420
RVSAE3/6DS-11/2“ SAE 2" 0.2 / 0.5 / 1.0 / 2.0 / 4.0 800 420
RVSAE3/6DS-2' SAE 2" 0.2 / 0.5 / 1.0 / 2.0 / 4.0 1000 420
RVSAE3DS-212 SAE 2 1/2" 0.2 / 0.5 / 1.0 / 2.0 / 4.0 1200 210
RVSAE6DS-212 SAE 2 1/2" 0.2 / 0.5 / 1.0 / 2.0 / 4.0 1200 420
  Type File extension Size
RVSAE36DS-34_170-P-060101-en Catalog / Data sheet PDF 682.5 KB
RVSAE36DS-11_170-P-060102-en Catalog / Data sheet PDF 681.0 KB
RVSAE36DS-114_170-P-060103-en Catalog / Data sheet PDF 683.8 KB
RVSAE36DS-112_170-P-060104-en Catalog / Data sheet PDF 681.6 KB
RVSAE36DS-21_170-P-060105-en Catalog / Data sheet PDF 681.8 KB
RVSAE3DS-212_170-P-060106-en Catalog / Data sheet PDF 471.9 KB
RVSAE6DS-212_170-P-060107-en Catalog / Data sheet PDF 589.2 KB
Einbaurichtlinien_170-P-059000-en Catalog / Data sheet PDF 51.9 KB

RVSAE3/6DS-...

with 180°-inverted installation

  • Agricultural machinery
  • Construction machines
  • General mechanical engineering
