General information

The L.8S valve series was developed for mobile applications and features a heavy-duty design with small external dimensions. With the modular system, the individual sections can be grouped according to requirements, which allows a great deal of flexibility and a wide range of applications.

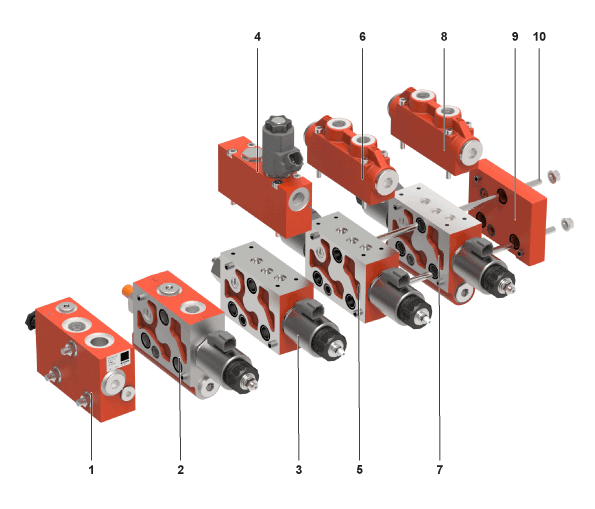

Example: block configuration
Item Model code
1 Inlet section with 3-way pressure compensator
2 Directional section with integrated individual pressure compensator/electromagnet, direct acting
3 Directional sections with port threads and flange face for auxiliary valve/solenoid, direct-acting
4 Auxiliary valves that bolt on to the top flange face O
5 Directional sections with port threads and flange face for auxiliary valve/solenoid, direct-acting
6 Auxiliary valves that bolt on to the top flange face O
7 Directional sections with flange face for auxiliary valve, and integral individual pressure compensator/solenoid, direct-acting
8 End sections (without function)
9 Tie rods/Seal Lock sealing nuts
