General information

Manufacturers of machinery and equipment depend on fast response times and the reliable supply of machine components.
The LVS08 and LVS12 directional proportional valves are pre-produced in standardized sections. This means short delivery times and at the same time a high degree of flexibility in use thanks to the modular system.

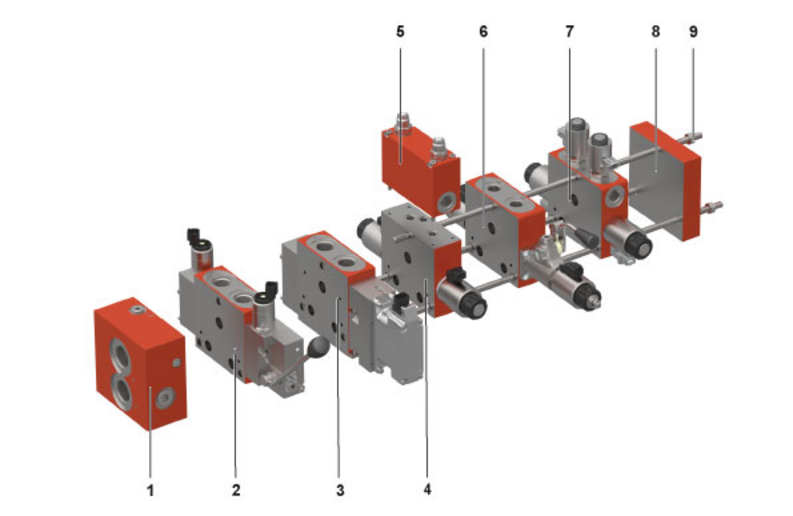

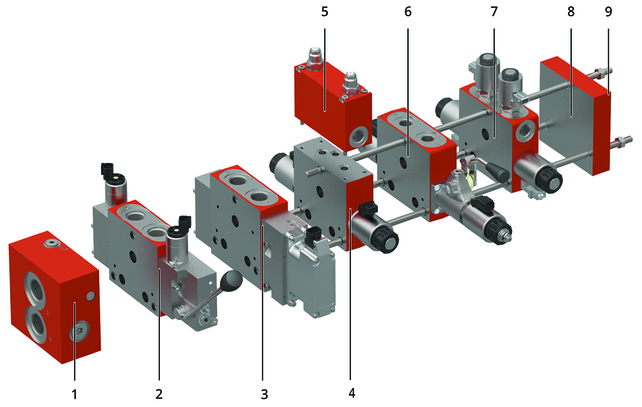

Example of modular manifold block
Item Model code
1 Inlet section
2 LVS12 directional valve section, two-stage electrohydraulic with additional manual operator
3 LVS12 directional valve section, two-stage electrohydraulic, with OnBoardElectronic
4 LVS08 directional valve section, directly actuated
5 Bolt-on section
6 LVS08 directional valve section, directly actuated with additional manual operator
7 LVS08 directional valve section, with integrated poppet valves
8 End section
9 Threaded tie rods
