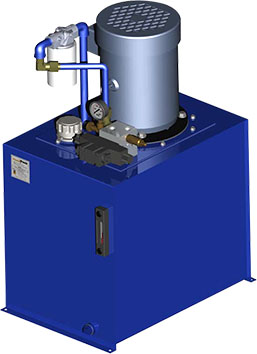

Hydraulic Power Packs, Series MT & T

We design and manufacture series MT & T AC hydraulic power units for industrial and commercial applications. These power units can be configured to create common circuits or systems that incorporate specialized and custom manifold designs.

System Capabilities

  • Flow rates from 0.25 gpm to 15 gpm, pressures to 4000 psi
  • Electric motors from 0.5 Hp to 20 Hp in several voltages and frequencies
  • Pressure balanced, pressure compensated, and fixed clearance pump options
  • Single acting, double acting, and multi-station circuit options
  • D03 & D05 directional valves and stack mount control modules
  • Conduit box, DIN style, and other coil options
  • Air / oil and water / oil type heat exchangers
  • Return line and pressure filter options

Remark

Higher flow rates, alternate pump types, and special manifolds available upon request.

Hydraulic Power Packs, Series MT & T
  Type File extension Size
MTT-Selection-Guide_510-P-000009-en Catalog / Data sheet PDF 1.1 MB
  • Industrial Presses and Processes
  • Rollforming Equipment
  • Material Lifts
  • Factory Automation
  • Scissor Lifts & Platforms
  • Material Handling Equipment
  • Hydraulic Door Systems
  • Positioning Equipment
