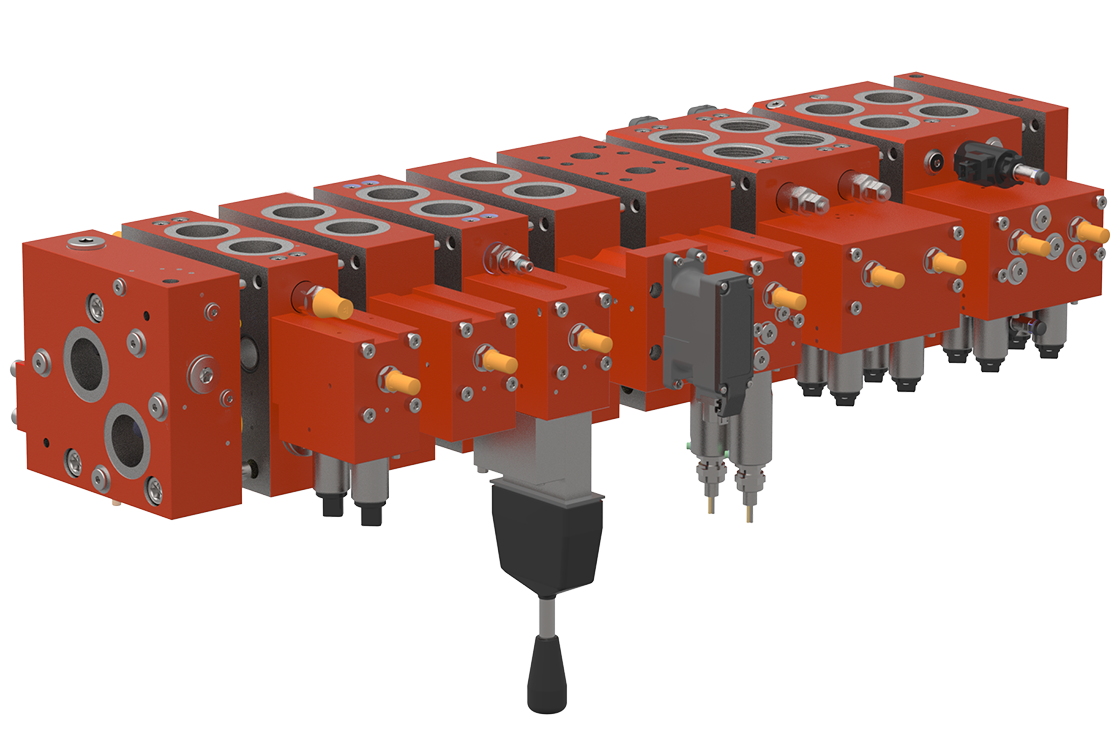

Proportional Directional Valves, Series SVC25

This range of proportional valves is used to provide load-independent speed control of motors and cylinders.

Proportional Directional Valves, Series SVC25
  • Compact sectional design
  • Adaptable building-block system
  • Low weight
  • Individual matching of flow rates
  • Up to 8 actuator sections
  • Parallel operation (individual compensators)
  • Primary pressure relief for each actuator
Type Nominal flow rate, max.
l/min
Acutator flow rate, max.
l/min
Max. inlet pressure (P)
bar
Max. work port press.
bar
Tank line pressure, max.
bar
Viscosity range
mm²/s
Voltage
V DC
SVC25 750 500 370 420 50 10 - 380 12 / 24
  Type File extension Size
SVC25_301-P-9050085-en Catalog / Data sheet PDF 605.2 KB

(Types of operators)

  • Electro-hydraulic proportional>
  • Hydraulic
  • Manual
  • Electro-hydraulic proportional − manual, combined
  • Electro-hydraulic proportional − hydraulic, combined
  • For other types, please consult Bucher
  • Construction machines
  • Materials handling
  • Municipal equipment
  • Mining
  • Military
  • Offshore
  • Other
