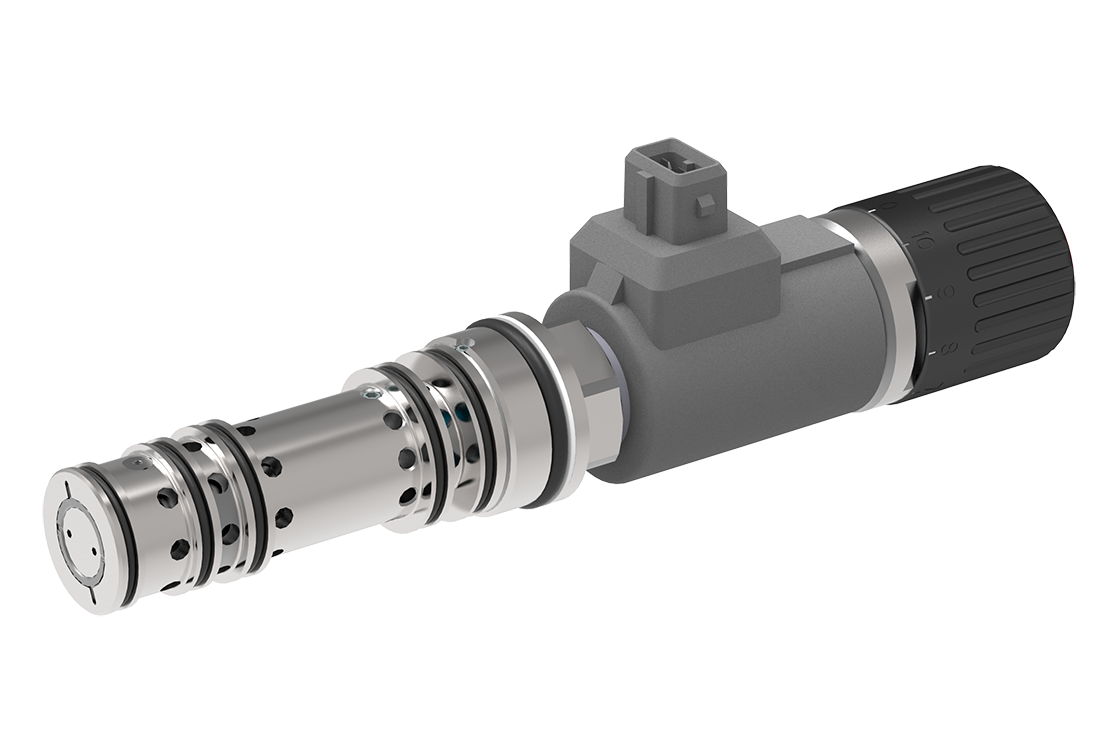

2- and 3-Way Flow Control Valve, Series SRCA

In the SRCA series of proportionally operated flow control valves, the optimized design of the pressure compensator ensures constant speeds at the hydraulic actuator. The valves can be used as 2-way or 3-way units. As the 3-way version, they divide the inlet flow into a constant-flow / priority-flow portion and a surplus-flow portion. The surplus flow can be pressurized.

2- and 3-Way Flow Control Valve, Series SRCA
  • Compact design
  • Very good reproducibility of the working speeds / hydraulic functions
  • High resolution of the Q-I characteristic
  • Low pressure losses of approx. 5 bar
  • Can be used as 2-way or 3-way flow control valves
  • ZnNi coating (>720h NSST)
  • Priority flow can be unloaded in the neutral position
  • Types of operation: proportional operation, on-off operation, manual operation, proportional or on-off operation with additional manual operation
Type Flow range
l/min		 Maximum input flow
l/min		 Operating pressure, max.
bar		 Leakage flow rate max.
cm³/min		 Voltage
V DC		 Enclosure prot.
SRCA 6 - 50 60 250 60 12 / 24 IP65
  Type File extension Size
SRCA_100-P-000144-en Catalog / Data sheet PDF 228.4 KB
  • Agricultural equipment
  • Construction machines
  • Municipal equipment
