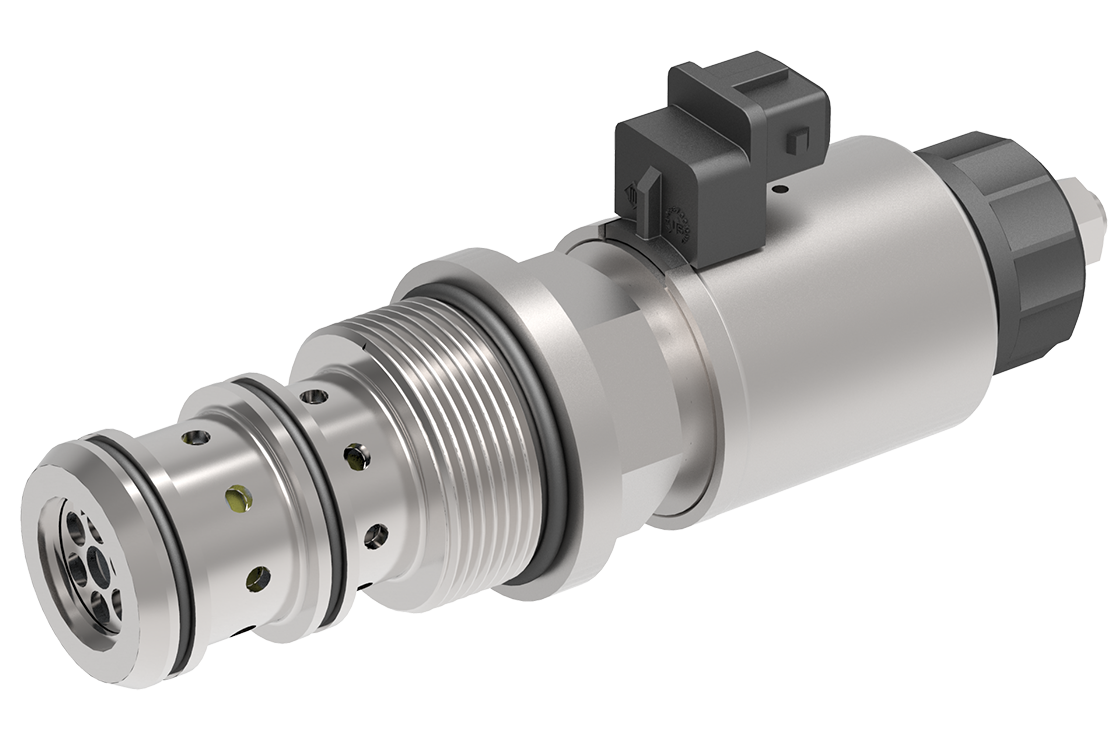

2- and 3-Way Flow Control Valve, Series SRCB

In the SRCB series of proportionally operated flow control valves, the optimized design of the pressure compensator ensures constant speeds at the hydraulic actuator. The valves can be used as 2-way or 3-way units. As the 3-way version, they divide the inlet flow into a constant-flow / priority-flow portion and a surplus-flow portion. The surplus flow can be pressurized.

2- and 3-Way Flow Control Valve, Series SRCB
  • Compact design
  • Very good reproducibility of the working speeds / hydraulic functions
  • Low pressure drop of 7 bar
  • Can be used as 2-way or 3-way flow control valves
  • ZnNi coating (>720h NSST)
  • Can be used with all types of pumps
  • Types of operation: proportional operation, on-off operation, manual operation, proportional or on-off operation with additional manual operation
Type Flow range
l/min		 Maximum input flow
l/min		 Operating pressure, max.
bar		 Leakage flow rate max.
cm³/min		 Voltage
V DC		 Enclosure prot.
SRCB 6 - 80 100 315 100 12 / 24 IP65 / IP67
  Type File extension Size
SRCB-H-2_100-P-000252-en Catalog / Data sheet PDF 513.5 KB
SRCB-H-3_100-P-000233-en Catalog / Data sheet PDF 533.1 KB
SRCB-SNT-3_100-P-000243-en Catalog / Data sheet PDF 579.2 KB
  • Agricultural equipment
  • Construction machines
  • Municipal equipment
