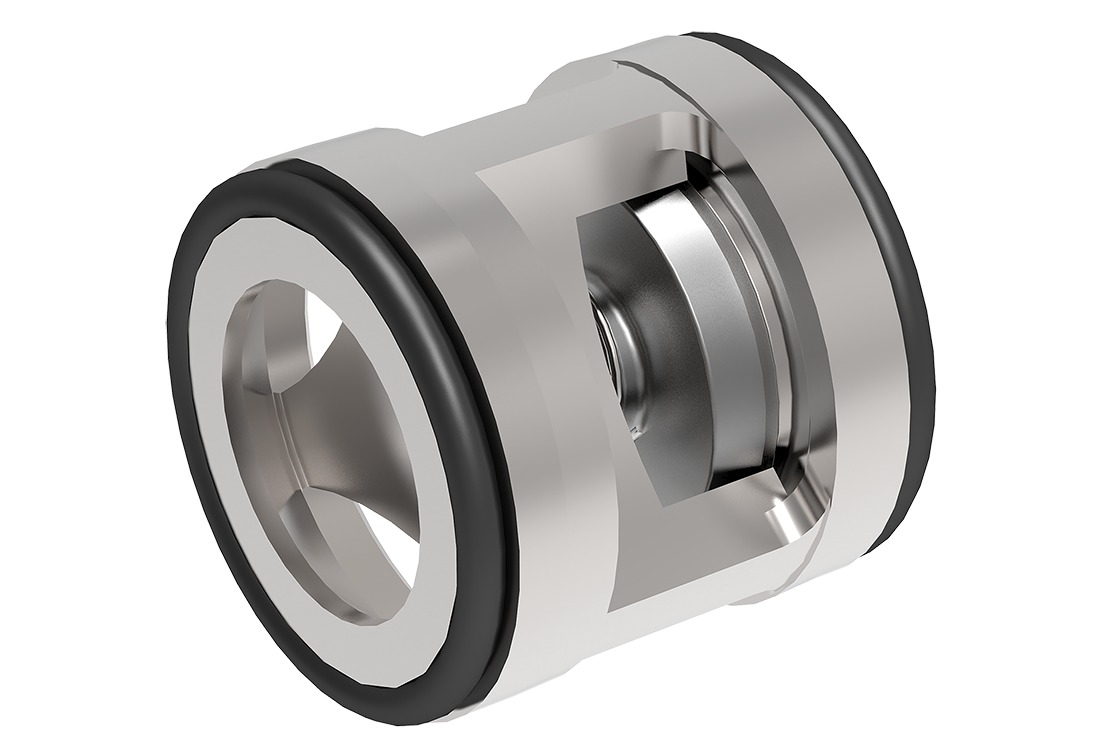

Check Valves RKVC-…

Ball-type, push-in design, invertible Series RKVC

Check valves prevent any flow in one direction. In the opposite direction, free flow with minimal pressure drop is possible.

Valve accesory:

The push-in RKVC cartridge valve can be used in conjunction with an ESH threaded mounting sleeve like a screw-in valve.
Further information is available at: Threaded Mounting Sleeves

Check Valves RKVC-…
Type Nominal sizes
 Opening pressures
bar		 Flow rate, max.
l/min		 Operating pressure, max.
bar
RKVC-04-… 04 0.2 / 0.5 / 1.0 / 2.0 15 350
RKVC-06-… 06 0.2 / 0.5 / 1.0 / 2.0 25 350
RKVC-08-… 08 0.2 / 0.5 / 1.0 / 2.0 60 350
RKVC-10-… 10 0.2 / 0.5 / 1.0 / 2.0 100 350
RKVC-16-… 16 0.2 / 0.5 / 1.0 / 2.0 210 350
RKVC-25-… 25 0.2 / 0.5 / 1.0 / 2.0 200 350
RKVC-32-… 32 0.2 / 0.5 / 1.0 / 2.0 360 350
RKVC-40-… 40 0.2 / 0.5 / 1.0 / 2.0 480 350
  Type File extension Size
RKVC-04_170-P-051201-en Catalog / Data sheet PDF 534.2 KB
RKVC-06_170-P-051202-en Catalog / Data sheet PDF 521.4 KB
RKVC-08_170-P-051203-en Catalog / Data sheet PDF 527.9 KB
RKVC-10_170-P-051204-en Catalog / Data sheet PDF 560.3 KB
RKVC-16_170-P-051205-en Catalog / Data sheet PDF 561.3 KB
RKVC-25_170-P-051206-en Catalog / Data sheet PDF 585.1 KB
RKVC-32_170-P-051207-en Catalog / Data sheet PDF 567.1 KB
RKVC-40_170-P-051208-en Catalog / Data sheet PDF 570.2 KB
Einbaurichtlinien_170-P-059000-en Catalog / Data sheet PDF 51.9 KB

  • High pressure rating
  • Virtually zero leakage
  • Compact construction
  • Various opening pressures
  • Can be used as right-angle valve
  • Agricultural machinery
  • Construction machines
  • General mechanical engineering
