Shuttle Valves WRVC…

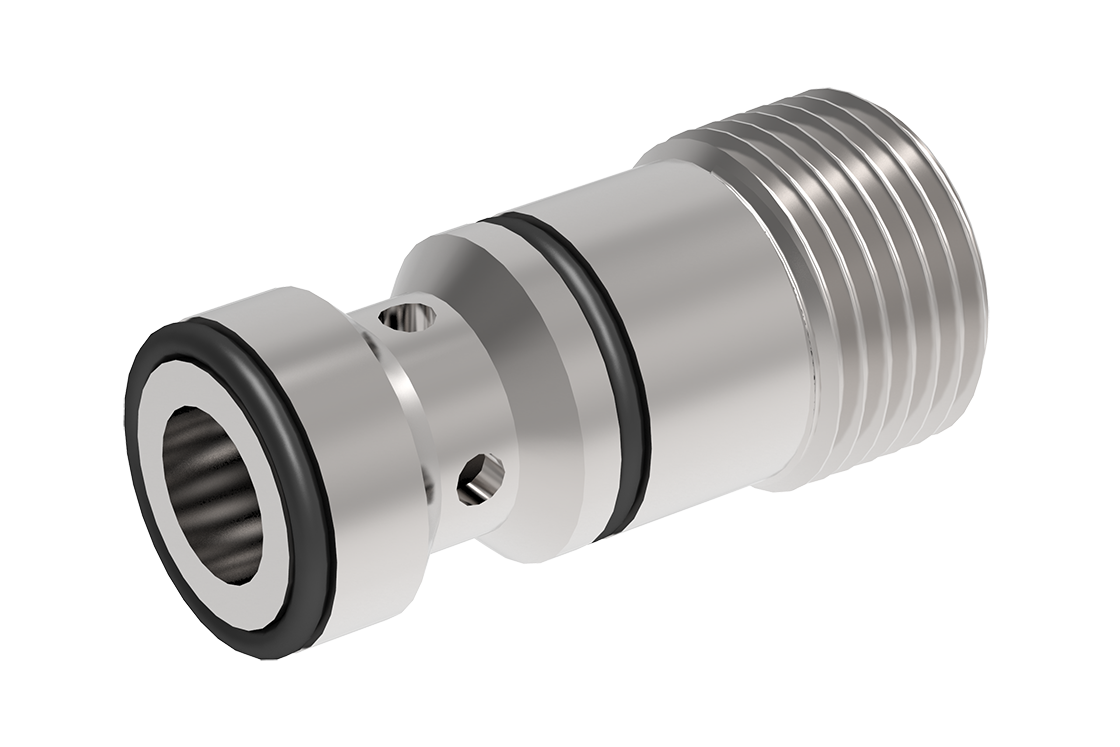

The WRVC… series shuttle valve is characterized by very high pressure load capacity and extremely low Δp. The 3-way shuttle valve shuts off whichever of the inlet ports A or B is at the lower pressure. Port C is thus always connected to the higher pressure. The shuttle valve in ball-type design is very robust, extremely leak-proof and insensitive to contamination.
Valve seat, ball and body are hardened. External O-rings and a backup ring seal the leakage path between the valve and cavity wall. The valve is available in nominal sizes 04, 06, 08 and 10.

Shuttle Valves WRVC…
  • High pressure rating
  • Lower Δp compared to check valves made by other manufacturers
  • Virtually leak-proof in closed condition
  • Compact construction
Type Nominal sizes
Flow rate, max.
l/min
Operating pressure, max.
bar
WRVC-G-04-… 04 12 350
WRVC-G-06-… 06 22 350
WRVC-G-08-… 08 45 350
WRVC-G-10-… 10 75 350
  Type File extension Size
WRVC-04_170-P-053001-en Catalog / Data sheet PDF 514.3 KB
WRVC-06_170-P-053002-en Catalog / Data sheet PDF 514.3 KB
WRVC-08_170-P-053003-en Catalog / Data sheet PDF 514.3 KB
WRVC-10_170-P-053004-en Catalog / Data sheet PDF 514.3 KB

  • Agricultural machinery
  • Construction machines
  • General mechanical engineering
  • Plant engineering
