Suspension Cylinders

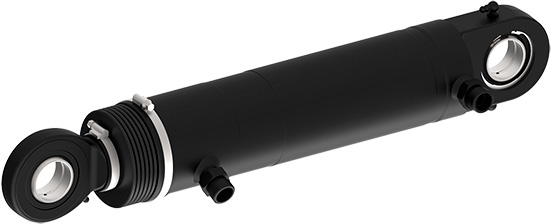

Suspension cylinders are used for hydro-pneumatic chassis suspension on mobile cranes. The extending piston rod is an area that is exposed to many demands, and it is protected by a gaiter.

Suspension Cylinders
  • Very reliable anti-leakage features
  • Visually appealing and robust construction
  • For use under the harshest conditions
  • Low-temperature service
  • Long bearing life
  • Good cost-effectiveness for the customer
Piston diameter
mm		 Rod diameter
mm		 Stroke length
mm		 Operating pressure
bar		 Port sizes
70…110 50…85 300 400 unrestricted

The above details are guideline values taken from previously developed products. If your requirements do not fit into this framework, we will find the best solution for your application.

  • Double-acting cylinder
  • Positioning device for proximity switch
  • Integral linear position-measurement system (high-resolution or low-cost versions)
  • With optional version for low-temperature service
  • Rod options: induction hardened and hard-chrome-plated to size or nickel-chrome plated
  • Mobile cranes
  • Tractors
  • Snowblowers
