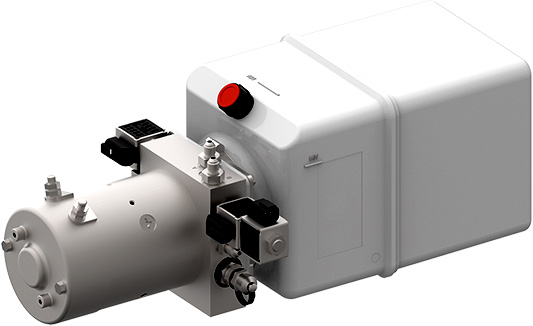

Hydraulic Power Packs, Series UP

These units feature a high degree of accuracy and have a wide application range. Bucher Hydraulics power packs are designed according an integrated modular system of valves for the various functions.

This highlights the equipment’s compact nature, the foundation of its high performance level.

The basic components of the power packs are:

  • a manifold block with cavities for various types of valves
  • a very quiet, high-efficiency gear pump
  • an electric motor (DC or AC)
  • a reservoir (plastic or steel)
  • several optional accessories
Hydraulic Power Packs, Series UP
  • Compact and modular construction, limited number of components, quick and easy assembly
  • Maximum flexibility – numerous different circuits can be built from just the few basic versions
  • Valve cavities conform to international standards
  • Optimisation of motor-pump unit produce increased efficiency and low operating noise level
Type Displace­ment
cm³/rev		 P2 inter­mittent pressure up to
bar		 12 VDC electric motor power *
kW		 24 VDC electric motor power *
kW		 48 VDC electric motor power *
kW		 220V/380V AC elec. motor power
kW		 Tank capacity
Liter
UP50 0.25 - 2.3 230 0.35 - 2.0 0.40 - 2.5 2.0 0.12 - 0.75 0.5 - 4.0
UP100 1.2 - 10.0 230 0.8 - 2.0 1.2 - 3.0 2.0 0.25 - 4.0 1.5 - 18.0

* The above motors are normally rated for intermittent operation.

Electric motors for continuous rating are also available on request.

  Type File extension Size
UP50_200-P-991186-en Catalog / Data sheet PDF 5.2 MB
UP100_200-P-991214-en Catalog / Data sheet PDF 14.3 MB
  • Unidirectional
  • Reversible (UP50 only)
  • Manual/solenoid control, 2 way / 3 way / 4 way
  • Modular blocks for CETOP 2 – 3 solenoid valves
  • Emergency hand pump
  • Customised manifolds to match client’s specific requirements
  • Car lifters
  • Lift trucks
  • Scissor lifts
  • Medical equipments
  • Truck tailgate lifts
  • Lifting platforms
  • Equipments for disabled needs
  • Automation: opening/closing of swing doors, tailgates, safety locking systems, etc.

Machinery Directive 2006/42/CE documentation is available in LOGintern Area
