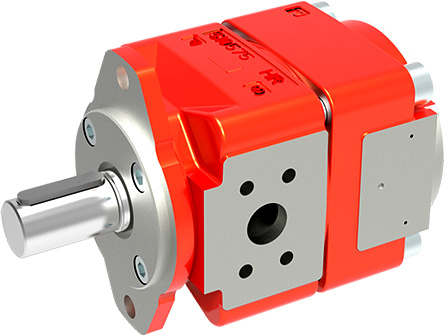

QXEM Internal Gear Units

Highly dynamic variable-speed multi-quadrant applications

The QXEM series is intended for operation as both a pump and a motor. A symmetrical design makes these units specially suitable for highly dynamic variable-speed multi-quadrant operation. In the industrial hydraulics field, they are therefore particularly appropriate for applications with highly cyclical loading. Thanks to the pinion-shaft technology, pressures up to 250 bar are built up in a single-stage. The direction of rotation can also be reversed in milliseconds, while maximum operational reliability is ensured at all times thanks to optimized hydrodynamic lubrication.

QXEM Internal Gear Units
  • Open/closed circuits up to 250 bar max. working pressure
  • Low noise levels < 75 dB(A)
  • Specially for highly dynamic multi-quadrant operation
  • Can be used with almost all hydraulic fluids
  • Can be used with fixed- and variable-speed drives
Type Operating pressure (continuous) up to
Operating pressure (intermittend) up to
Speed max. pump
Speed max. motor
QXEM2 210 250 5-8 3250 6000
QXEM3 210 250 10-16 3030 5500
QXEM4 210 250 20-32 2900 5000
QXEM5 210 250 40-63 2500 4500
QXEM6 210 250 80-125 2250 4000
QXEM8 210 250 160-250 1600 3500
  Type File extension Size
QXEM_100-P-000225-en Catalog / Data sheet PDF 634.9 KB
  • Injection molding machines
  • Hydraulic presses
  • Waste compactors
  • Pressure die casting machines
