LVS12 directional valve sections with electrohydraulic pilot stage

Hydraulic characteristics Description, value, unit
Maximum operating pressure Pump side: 300 bar1)
Actuator side: 320 bar1)
Maximum flow rate 180 l/min
Spool increments according to the actuator flow rates at 12 bar Δp 16(C), 25(D), 40(F), 50(P), 63(G), 80(H), 100(K), 125(L), 150(M), 180(O) l/min
Nominal voltage 12 or 24 V DC
Voltage tolerance ± 10%
Power consumption max. 18 W (at 1.5 A + 12 V or 0.75 A + 24 V)
Energizing current At 12 V: 0.6 - 1.50 A
At 24 V: 0.3 - 0.75 A
Actuated time 100 %
Protection class AMP: IP65
Deutsch DT04: IP67 (DIN EN 60529)
1) Higher pressures and flow rates on request
Pressure-reducing valve characteristics Description, value, unit
Maximum current At 12 V: 1.6 mA
At 24 V: 0.8 mA
Coil resistance at 12 V: 5.3 Ω
at 24 V: 21.2 Ω
PWM frequency (dither) 100 Hz

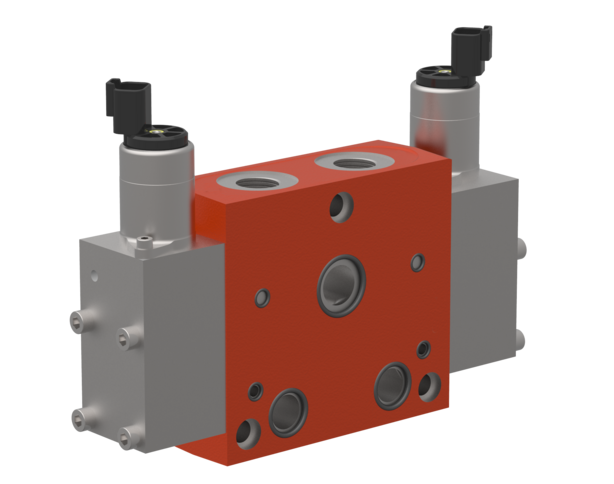

Description
Standard equipment
  • Port thread for actuators A and B = G¾"
  • Integral pressure compensator
Freely configurable functions
  • Flow rate
  • Spool type in mid-position
  • Plug base
  • Emergency control
  • With spool type 3A, 4A and 4D: spool stroke limiter feature (adjustable ex works)

2 independent 3/2 proportional directional valves
The spool types 6A and 6D are designed to supply 2 motorized drives. By dividing the control spool 6A, 2 motorized drives can be implemented in parallel, and independently of one another, in one valve body.
Options for spool type and pressure compensator
Flow rate Spool type 3A (Actuator B closed) Spool type 3J (Actuator A closed) Spool type 4A Spool type 4D Spool type 6A Spool type 6D
16 l/min – *C3JB CC4AC CC4DC – CC6DC
25 l/min – *D3JB DD4AC DD4DC DD6AC DD6DC
32 l/min – *E3JB EE4AC EE4DC EE6AC EE6DC
40 l/min *F3JB FF4AC FF4DC FF6AC FF6DC
50 l/min – *P3JB PP4AC PP4DC PP6AC PP6DC
63 l/min – *G3JB GG4AC GG4DC GG6AC GG6DC
80 l/min – *H3JB HH4AC HH4DC HH6AC HH6DC
100 l/min – *K3JB KK4AC KK4DC KK6AC KK6DC
125 l/min – *L3JB LL4AC LL4DC – LL6DC
150 l/min – *M3JB MM4AC – – MM6DC
180 l/min O*3AA *O3JB OO4AC OO4DC – OO6DC
For further information on ordering, see chapter Ordering information.
Actuator type Center position: actuator locked to tank Center position: actuator connected to tank
For single-acting actuators 3J
For double-acting actuators 4A 4D
For two single-acting actuators in one section (split control spool) 6A 6D
Description
Standard equipment
  • Port thread for actuators A and B = G¾"
  • Integral pressure compensator
  • Pressure/make-up valve (choice of pressure settings)
Freely configurable functions
  • Flow rate
  • Spool type in mid-position
  • Plug base
  • Emergency control
  • With spool type 3A, 4A and 4D: spool stroke limiter feature (adjustable ex works)

2 independent 3/2 proportional directional valves
The spool types 6A and 6D are designed to supply 2 motorized drives. By dividing the control spool 6A, 2 motorized drives can be implemented in parallel, and independently of one another, in one valve body.
Pressure, make-up function
The pressure control valves protect actuators from unacceptably large pressure peaks when the actuator is operated or when external forces act on the actuator. The make-up function supplies oil to the actuator when the tank pressure is higher than the actuator pressure.
Options for spool type and pressure compensator
Flow rate Spool type 3A (Actuator B closed) Spool type 3J (Actuator A closed) Spool type 4A Spool type 4D Spool type 6A Spool type 6D
16 l/min – *C3JB CC4AC CC4DC – CC6DC
25 l/min – *D3JB DD4AC DD4DC DD6AC DD6DC
32 l/min – *E3JB EE4AC EE4DC EE6AC EE6DC
40 l/min *F3JB FF4AC FF4DC FF6AC FF6DC
50 l/min – *P3JB PP4AC PP4DC PP6AC PP6DC
63 l/min – *G3JB GG4AC GG4DC GG6AC GG6DC
80 l/min – *H3JB HH4AC HH4DC HH6AC HH6DC
100 l/min –– *K3JB KK4AC KK4DC KK6AC KK6DC
125 l/min – *L3JB LL4AC LL4DC – LL6DC
150 l/min – *M3JB MM4AC – – MM6DC
180 l/min O*3AA *O3JB OO4AC OO4DC – OO6DC
Options for the pressure relief and make-up function at the actuators
Ordering codeOptionOrdering codeOption
Aadjustable 70 bar – 230 bar (in 5 bar steps)Badjustable 150 bar – 380 bar (in 5 bar steps)
Dfixed setting, 25 barEfixed setting, 32 bar
Ffixed setting, 40 barH fixed setting, 63 bar
Ifixed setting, 80 barK fixed setting, 100 bar
L fixed setting, 125 barMfixed setting, 140 bar
Nfixed setting, 160 barOfixed setting, 175 bar
Pfixed setting, 190 barQfixed setting, 210 bar
R fixed setting, 230 barS fixed setting, 250 bar
Tfixed setting, 280 barU fixed setting, 300 bar
Vfixed setting, 330 bar#Cavity prepared (closed, no function, prepared for retrofitting anti-shock valves, with plug)
For further information on ordering, see chapter Ordering information.
Actuator type Center position: actuator locked to tank Center position: actuator connected to tank
For single-acting actuators 3J
For double-acting actuators 4A 4D
For two single-acting actuators in one section (split control spool) 6A 6D

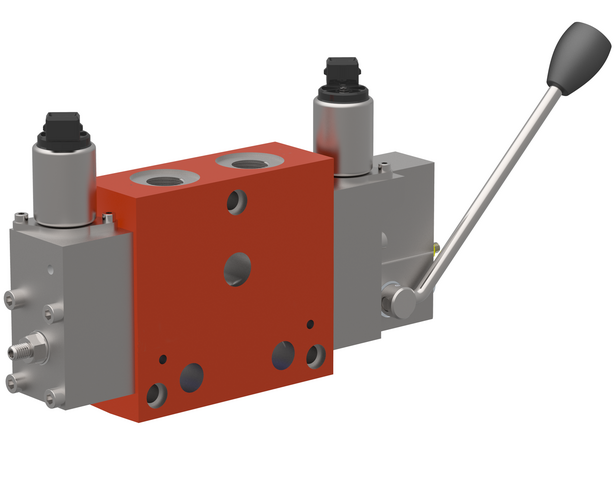

Description
Standard equipment
  • Integral pressure compensator
  • Port thread for actuators A and B = G¾"
  • Additional manual operator
  • Spool stroke limiter feature
Freely configurable functions
  • Flow rate
  • Spool type in mid-position
  • Plug base
  • Emergency control
  • With spool type 3A, 4A and 4D: spool stroke limiter feature (adjustable ex works)

2 independent 3/2 proportional directional valves
The spool types 6A and 6D are designed to supply 2 motorized drives. By dividing the control spool 6A, 2 motorized drives can be implemented in parallel, and independently of one another, in one valve body.
Options for spool type and pressure compensator
Flow rate Spool type 4A Spool type 4D
16 l/min CC4AC CC4DC
25 l/min DD4AC DD4DC
32 l/min EE4AC EE4DC
40 l/min FF4AC FF4DC
50 l/min PP4AC PP4DC
63 l/min GG4AC GG4DC
80 l/min HH4AC HH4DC
100 l/min KK4AC KK4DC
125 l/min LL4AC LL4DC
150 l/min MM4AC –
180 l/min OO4AC OO4DC
For further information on ordering, see chapter Ordering information.
Actuator type Center position: actuator locked to tank Center position: actuator connected to tank
For double-acting actuators 4A 4D

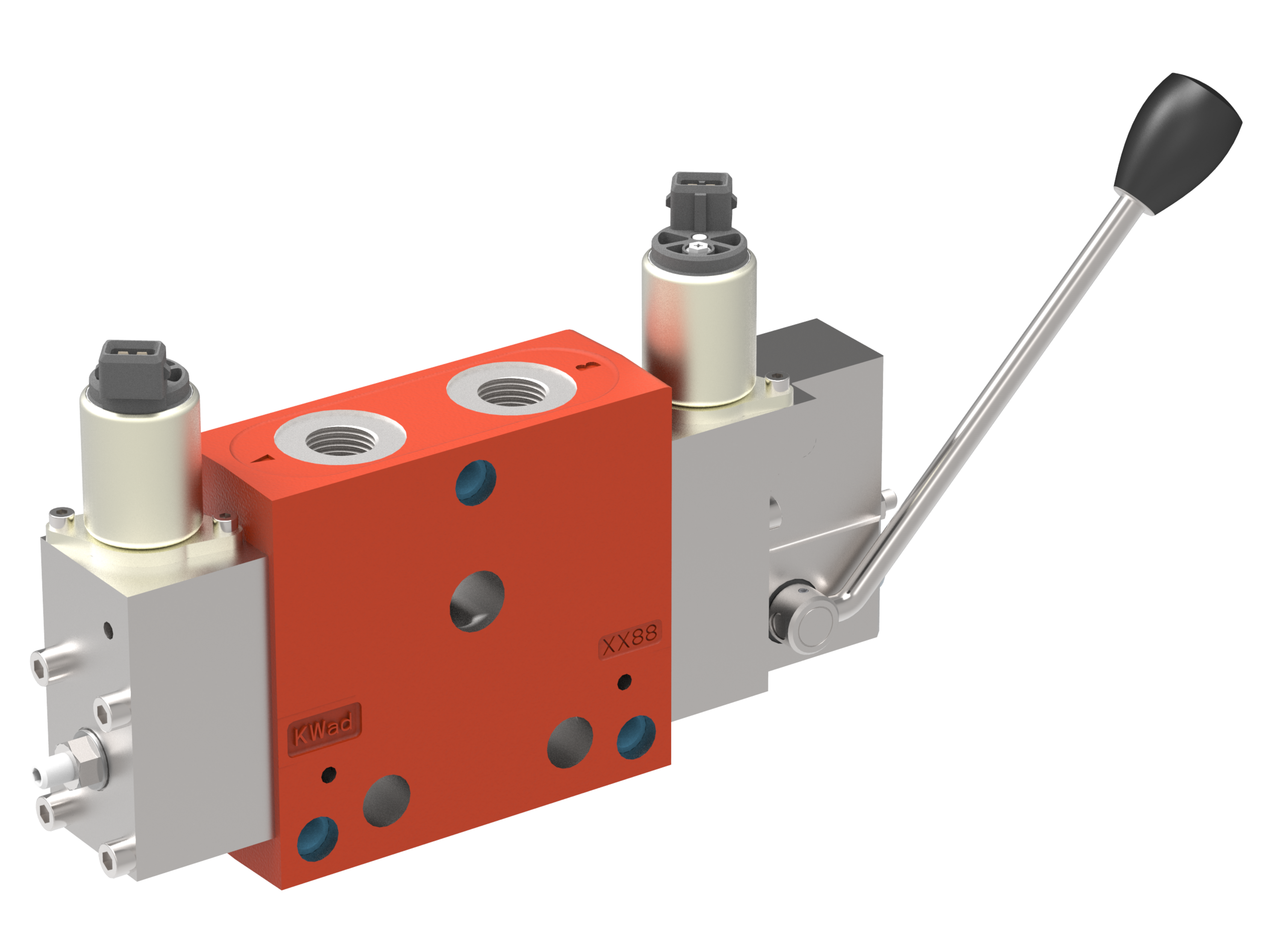

Description
Standard equipment
  • Port thread for actuators A and B = G¾"
  • Integral pressure compensator
  • Pressure/make-up valve (choice of pressure settings)
  • Additional manual operator
  • Spool stroke limiter feature
Freely configurable functions
  • Flow rate
  • Spool type in mid-position
  • Plug base
  • Emergency control
  • With spool type 3A, 4A and 4D: spool stroke limiter feature (adjustable ex works)

2 independent 3/2 proportional directional valves
The spool types 6A and 6D are designed to supply 2 motorized drives. By dividing the control spool 6A, 2 motorized drives can be implemented in parallel, and independently of one another, in one valve body.
Pressure, make-up function
The pressure control valves protect actuators from unacceptably large pressure peaks when the actuator is operated or when external forces act on the actuator. The make-up function supplies oil to the actuator when the tank pressure is higher than the actuator pressure.
Options for spool type and pressure compensator
Flow rate Spool type 4A Spool type 4D
16 l/min – CC4DC
25 l/min DD4AC DD4DC
32 l/min EE4AC EE4DC
40 l/min FF4AC FF4DC
50 l/min PP4AC PP4DC
63 l/min GG4AC GG4DC
80 l/min HH4AC HH4DC
100 l/min KK4AC KK4DC
125 l/min LL4AC LL4DC
150 l/min MM4AC –
180 l/min OO4AC OO4DC
Options for the pressure relief and make-up function at the actuators
Ordering codeOptionOrdering codeOption
Aadjustable 70 bar – 230 bar (in 5 bar steps)Badjustable 150 bar – 380 bar (in 5 bar steps)
Dfixed setting, 25 barEfixed setting, 32 bar
Ffixed setting, 40 barH fixed setting, 63 bar
Ifixed setting, 80 barK fixed setting, 100 bar
L fixed setting, 125 barMfixed setting, 140 bar
Nfixed setting, 160 barOfixed setting, 175 bar
Pfixed setting, 190 barQfixed setting, 210 bar
R fixed setting, 230 barS fixed setting, 250 bar
Tfixed setting, 280 barU fixed setting, 300 bar
#Cavity prepared (closed, no function, prepared for retrofitting anti-shock valves, with plug)
For further information on ordering, see chapter Ordering information.
Actuator type Center position: actuator locked to tank Center position: actuator connected to tank
For double-acting actuators 4A 4D
Control characteristic LVS12 direction valve sections
  1. Spool type C, 16 l/min (4.25 gpm)
  2. Spool type D, 25 l/min (6.5 gpm)
  3. Spool type F, 40 l/min (11 gpm)
  4. Spool type P, 50 l/min (13 gpm)
  5. Spool type, 63 l/min (16.5 gpm)
  6. Spool type H, 80 l/min (21 gpm)
  7. Spool type K, 100 l/min (26 gpm)
  8. Spool type L, 125 l/min (33 gpm)
  9. Spool type M, 150 l/min (40 gpm)
  10. Spool type O, 180 l/min (48 gpm)
