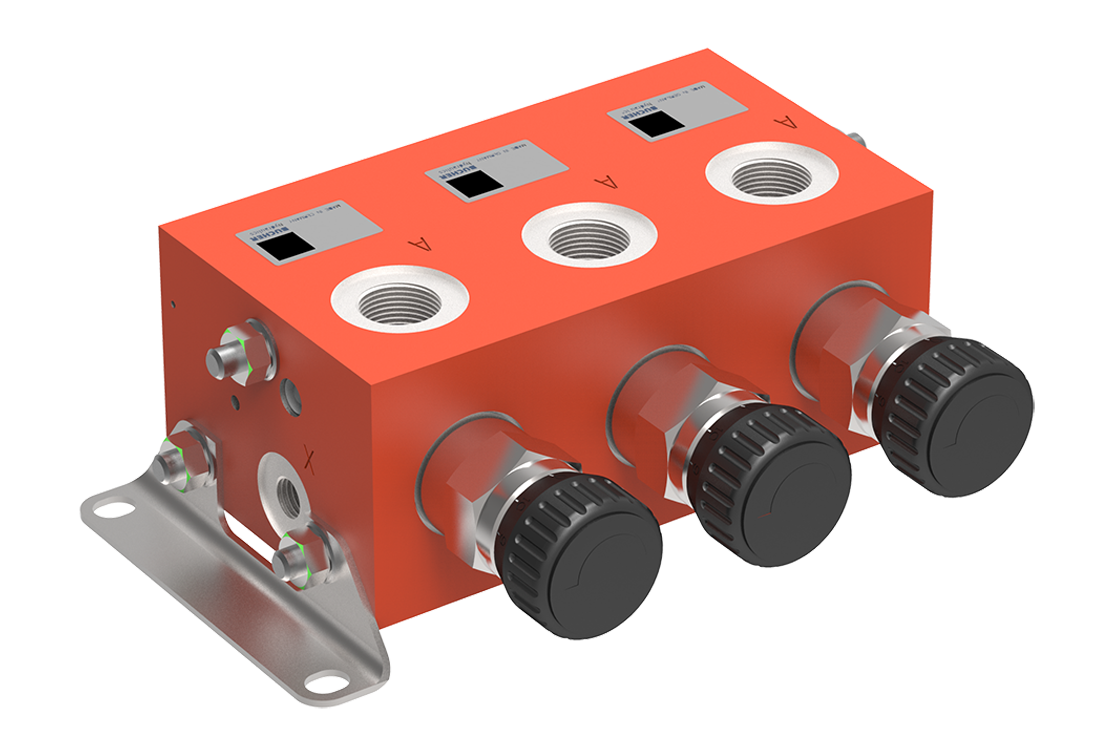

2- and 3-Way Flow Control Valve MTKK / MTKL

The MTKK / MTKL manually adjustable flow control valves are used for pressure-independent adjustment (supply) of a hydraulic actuator and thus ensure constant actuator speeds.

When the MTKK series is used with a fixed-displacement pump, it is easy to implement series circuits for hydraulic motors. The surplus flow and/or return flow can be used for the downstream hydraulic motor. The MTKL series is specially designed for use with variable-displacement pumps.

2- and 3-Way Flow Control Valve MTKK / MTKL
  • Compact design
  • Flexible valve mounting possibilities
  • Very good reproducibility of the working speeds / hydraulic functions
  • Low pressure losses
  • Manual adjustment, with <1 turn (330°) from 0 to max. flow rate
Type Flow range
l/min		 Maximum input flow
l/min		 Operating pressure, max.
bar		 Leckage flow at zero setting th unloaded surplus flow
cm³/min
MTKK / MTKL 3 - 50 65 315 50
  Type File extension Size
MTKK-KL_100-P-000035-en Catalog / Data sheet PDF 156.8 KB
  • Agricultural equipment
  • Construction machines
  • Municipal equipment

Valve type MTKK..

for use fixed delivery or constant pressure pumps

Inlet section MTKKE..
Interm. section MTKKZ..
End section MTKKA..

Valve type MTKL..

for use with Load Sensing pumps

Inlet section MTKLE..
Interm. section MTKLZ..
End section MTKLA..

Additional component

Inlet-/Intermediate section with pressure relief valve MTKDEPB-1M22
