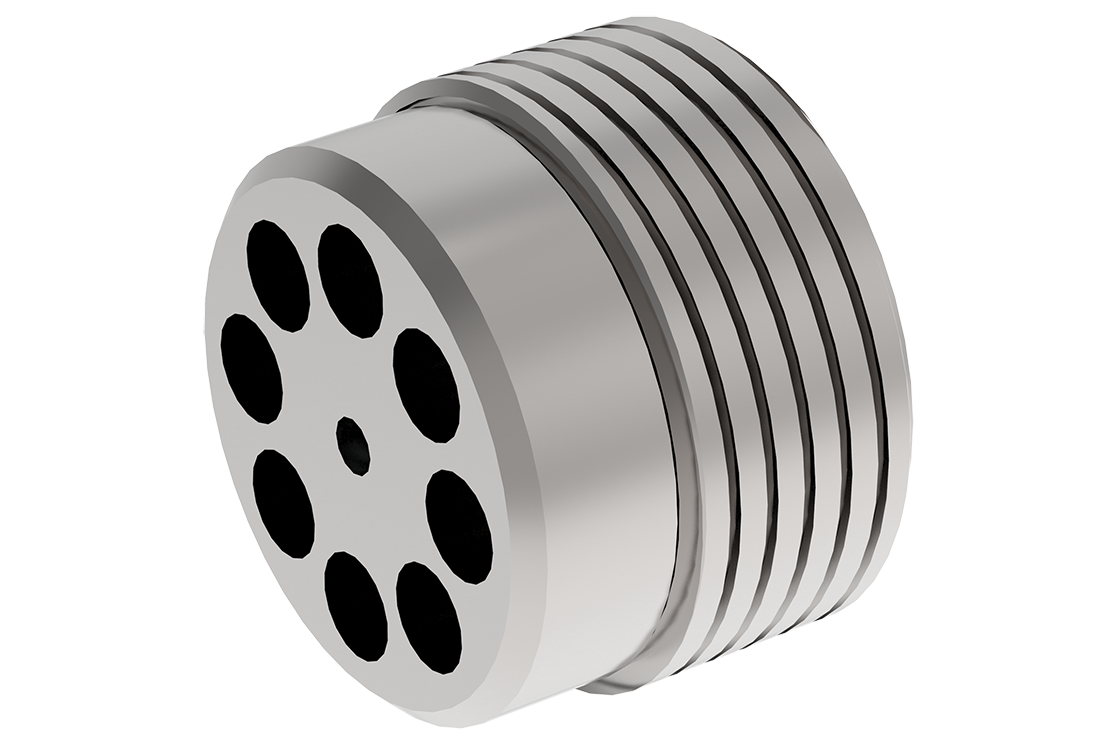

Check Valves RKVG-…

Ball-type, screw-in design, series RKVG

These check valves prevent any flow against the screw-in direction. In the opposite direction, free flow with minimal pressure drop is possible.

RKVG-KB = Compact, customary cavity type

Check Valves RKVG-…
  • High pressure rating
  • Virtually zero leakage
  • Compact construction
Type Nominal sizes
 Opening pressures
bar		 Flow rate, max.
l/min		 Operating pressure, max.
bar
RKVG-M-03-… 03 0.2 / 0.5 8 350
RKVG-G-04-… 04 0.2 / 0.5 / 1.0 15 350
RKVG-G-06-… 06 0.2 / 0.5 / 1.0 30 350
RKVG-G-08-… 08 0.2 / 0.5 / 1.0 50 350
RKVG-G-10-… 10 0.2 / 0.5 / 1.0 90 350
RKVG-G-16-… 16 0.2 / 0.5 / 1.0 170 350
RKVG-G-04-02-KB 04 0.2 15 350
RKVG-G-06-02-KB 06 0.2 30 350
RKVG-G-08-02-KB 08 0.2 50 350
RKVG-G-10-02-KB 10 0.2 90 350
RKVG-G-16-02-KB 16 0.2 170 350
  Type File extension Size
RKVG-M-03_170-P-060108-en Catalog / Data sheet PDF 538.3 KB
RKVG-04_170-P-051101-en Catalog / Data sheet PDF 622.6 KB
RKVG-06_170-P-051102-en Catalog / Data sheet PDF 543.3 KB
RKVG-08_170-P-051103-en Catalog / Data sheet PDF 623.2 KB
RKVG-10_170-P-051104-en Catalog / Data sheet PDF 626.5 KB
RKVG-16_170-P-051105-en Catalog / Data sheet PDF 545.0 KB
RKVG-KB-04_170-P-051651-en Catalog / Data sheet PDF 620.6 KB
RKVG-KB-06_170-P-051652-en Catalog / Data sheet PDF 550.5 KB
RKVG-KB-08_170-P-051653-en Catalog / Data sheet PDF 549.5 KB
RKVG-KB-10_170-P-051654-en Catalog / Data sheet PDF 549.6 KB
RKVG-KB-16_170-P-051655-en Catalog / Data sheet PDF 549.3 KB
Einbaurichtlinien_170-P-059000-en Catalog / Data sheet PDF 51.9 KB
Montageschluessel RV_170-P-051600-en Catalog / Data sheet PDF 177.9 KB

  • Agricultural machinery
  • Construction machines
  • General mechanical engineering
  • Plant engineering
