Stabiliser Cylinders

Mobile cranes are usually brought into their working position with four ground stabiliser cylinders. It is important to provide the greatest possible stability. The cylinders must be designed for high loads and shear forces. As is fitting for this application, we use high-strength materials and take care to ensure the greatest precision. The stability of the cylinder is ensured by incorporating leak-free lock valves in the head of the cylinder.

Very reliable anti-leakage features
Visually appealing and robust construction
For use under the harshest conditions
Low-temperature service
Good cost-effectiveness for the customer

Piston diameter mm	Rod diameter mm	Stroke length mm	Peak pressure bar	Supporting force, max. kN	Port sizes
100…250	200	500…750	450	2500	unrestricted

The above details are guideline values taken from previously developed products. If your requirements do not fit into this framework, we will find the best solution for your application.

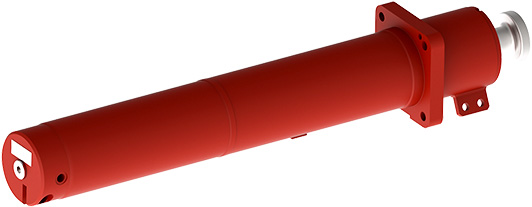

Double-acting cylinder
With optional version for low-temperature service
Rod made of high-strength material, double-hard-chrome-plated to size
Integral pilot-operated check valve or double check valve
Optional integral pressure relief valve
Optional integral pipe rupture protection

Mobile crane
