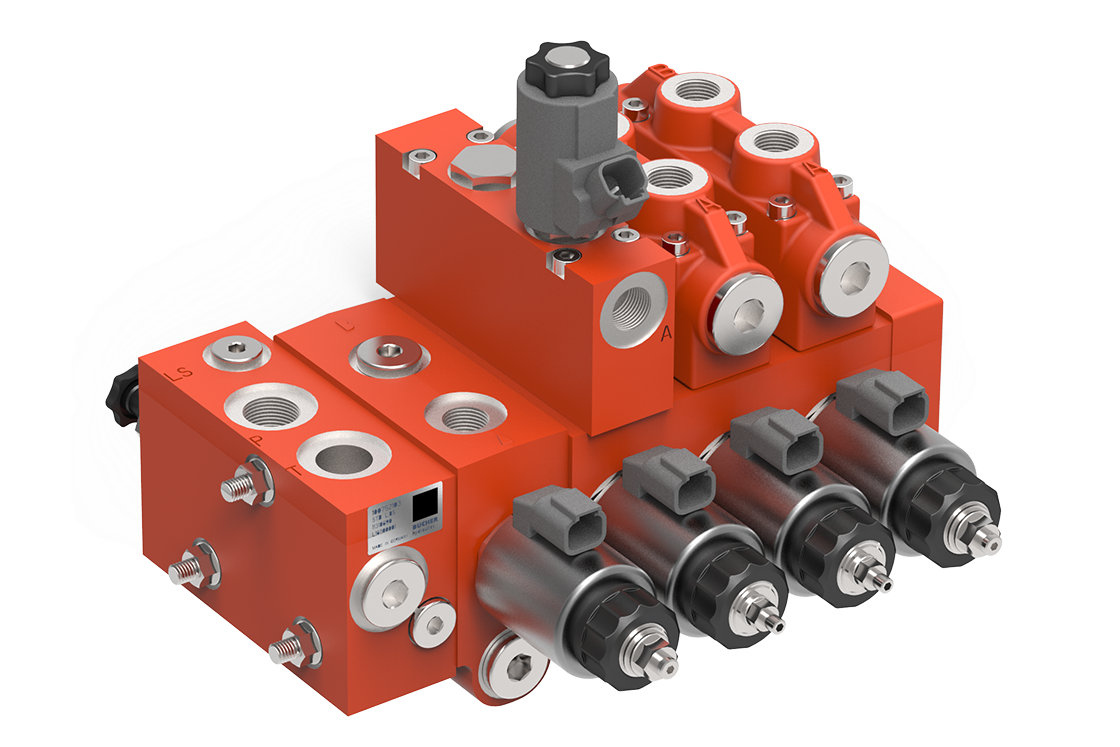

Proportional Directional Valves, Series L.8S

The L.8S valve series covers an actuator flow rate of up to 90 l/min and was developed for mobile applications. The valves are particularly characterized by their robust design and small external dimensions, and they offer a wide variety of additional functions that can be integrated. The L.8S is a flexible modular system whose elements can be combined to form a valve block that complies fully with the requirements of the application. The valve blocks can be configured for fixed-displacement or load-sensing pump systems as well as for systems that can switch between either type of supply.

Proportional Directional Valves, Series L.8S
  • Types of operation: hand lever, cable control, direct-operated solenoid, hydraulic , two-stage electrohydraulic, stepper motor operation for every type of system
  • Load-sensing valve
  • Upstream pressure compensator with a wide range of options
  • Can be used in all pump systems

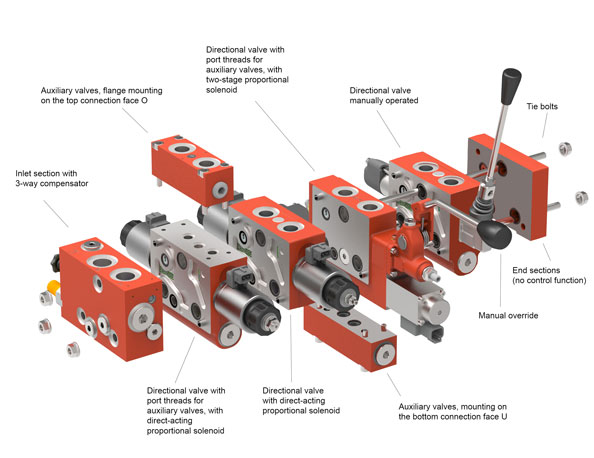

  • Freely configurable, modular, flexible and compact building-block system for numerous applications
  • Option: extended functions can be integrated
  • Load-independent flow control, even with parallel operation of several actuators
  • With no-drop-before-lift function
  • Integral 3-way pressure control
  • Low pressure losses thanks to the valve design and the low block ∆p from 5 bar
Type Nominal flow rate, max.
l/min		 Acutator flow rate, max.
l/min		 Max. inlet pressure (P)
bar		 Max. work port press.
bar		 Tank line pressure, max.
bar		 Viscosity range
mm²/s		 Voltage
V DC
L.8S 150 90 300 * 300 * 40 (opt. 210) 10 - 380 12 / 24

* Individual maximum pressures may deviate (see documentation)

  Type File extension Size
L8S_100-P-000047-en Catalog / Data sheet PDF 2.8 MB
L8S_100-P-000047-us Catalog / Data sheet PDF 2.7 MB
L8S-Vorzugsprogramm_100-P-000003-en Catalog / Data sheet PDF 1.8 MB
L8S-Vorzugsprogramm_100-P-000003-us Catalog / Data sheet PDF 1.8 MB

  • Agricultural engineering
  • Earth-moving and construction machinery
  • Road-building machines
  • Municipal vehicles and equipment
  • Materials handling and lifting equipment
  • Mining equipment
  • Ground drilling rigs
  • Forestry equipment
  • Tunneling machinery
  • Special-purpose machine building
