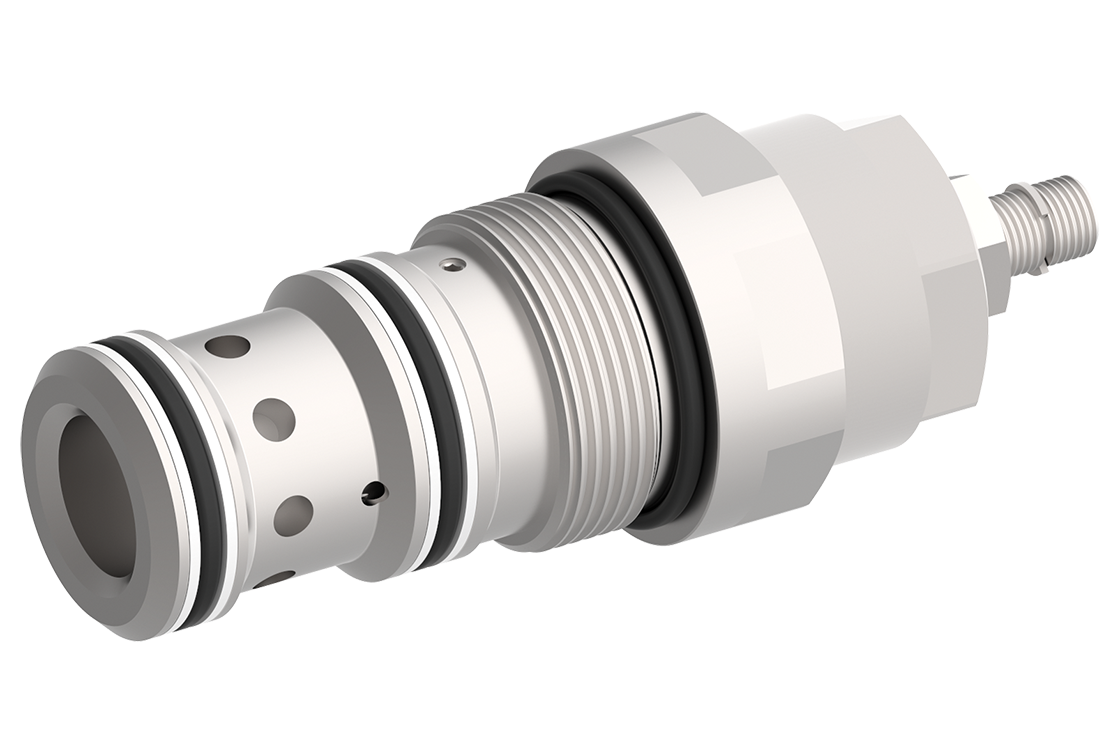

Direct Acting and Two-stage Pressure Compensators

Direct Acting and Two-stage Pressure Compensators
Symbol Type Q max.
l/min		 P max.
bar		 Operation Cavity type Thread Data sheet Data sheet
DWDPB-5D… 80 350 hand adjustment DD M24 x 1,5 DWDP-5-10_400-P-330501-en
DWDPA-5B… 250 420 hand adjustment EB M42 x 2 DWDP-5-16_400-P-330801-en
DWDPB-2D… 140 350 hand adjustment DD M24 x 1,5 DWDP-2-10_400-P-330101-en
DWDPA-2B… 350 420 hand adjustment EB M42 x 2 DWDP-2-16_400-P-330701-en
DWVPA / Z-2… 140 315 hand adjustment DD M24 x 1,5 DWVP-2-10_400-P-330201-en
DWVPA / Y / Z-2B… 350 420 hand adjustment EB M42 x 2 DWVP-2-16_400-P-330711-en
WDWVPB / Z-2… 140 350 solenoid DD M24 x 1,5 WDWVP-2-10_400-P-331101-en
