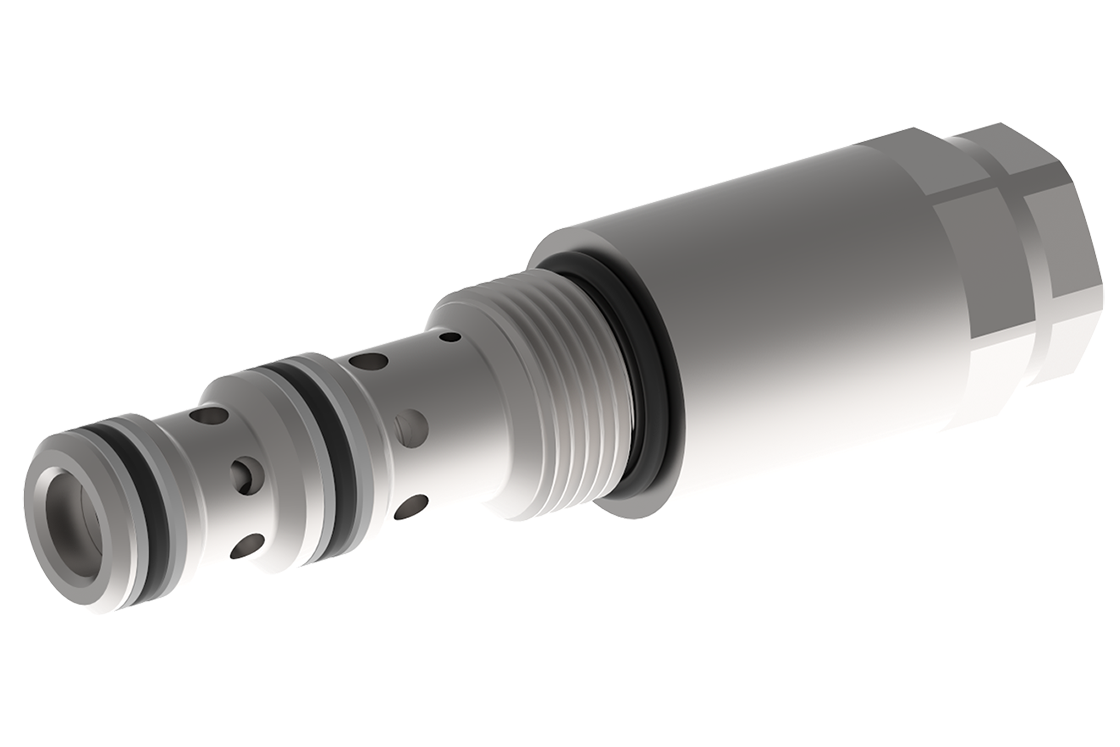

Direct Acting and Two-stage Pressure Reducing Valves

Direct Acting and Two-stage Pressure Reducing Valves
Symbol Type Q max.
l/min		 P max.
bar		 Operation Cavity type Thread Data sheet Data sheet
DDRRZ-7080… 10 210 prop. solenoid AGS push-in DDRR-7080-7110-4_400-P-590111-en
DRDRA-7GG… 12 100 prop. solenoid AG push-in DRDR-7-4_400-P-590151-en
DDRRZ-7011… 15 100 prop. solenoid AG push-in DDRR-7011-7055-5_400-P-590101-en
DRDSA-7MQ… 15 250 prop. solenoid AM 3/4-16 UNF DRDS-7Q_400-P-591051-en
DRDTA-7MQ… 15 250 prop. solenoid AM 3/4-16 UNF DRDT-7Q_400-P-591061-en
DRDTA-7M... 25 250 prop. solenoid AM 3/4-16 UNF DRDTA-7M_400-P-591065-en
DDRRY-7020… 20 210 prop. solenoid AG push-in DDRR-7020-7100-4_400-P-590121-en
EPRT-08 26 240 prop. solenoid C0830 3/4-16 UNF EPRT-08_520-P-110260-en
DRVSA-7P… 120 350 prop. solenoid DP M27 x 2 DRVS-7-10_400-P-591101-en
DDRB-7M-2... 10 250 hand adjustment AM 3/4-16 UNF DDR-7-4_400-P-260501-en
DDRB-7M-4… 20 250 hand adjustment AM 3/4-16 UNF DDR-7-4_400-P-260501-en
DDRA-7L… 70 315 hand adjustment DL M27 x 2 DDR-7-10_400-P-260701-en
DRPSA-5D… 120 315 prop. solenoid DD M24 x 1,5 DRPS-5-10_400-P-581501-en
DRPSA-5DG… 120 300 prop. solenoid DD M24 x 1,5 DRPS-5G_400-P-581551-en
DRPSB-5B… 250 350 prop. solenoid EB M42 x 2 DRPS-5-16_400-P-581701-en
DDRA… 40 315 hand adjustment AL 3/4-16 UNF DDR-5-5_400-P-260301-en
DRPA… 120 350 hand adjustment DD M24 x 1,5 DRP-5-10_400-P-280201-en
WDRVPC… 140 350 solenoid DD M24 x 1,5 WDRVP-5-10_400-P-290501-en
DRPB… 250 350 hand adjustment EB M42 x 2 DRP-5-16_400-P-285401-en
WDRVPA… 250 350 solenoid EB M42 x 2 WDRVP-5-16_400-P-295401-en
