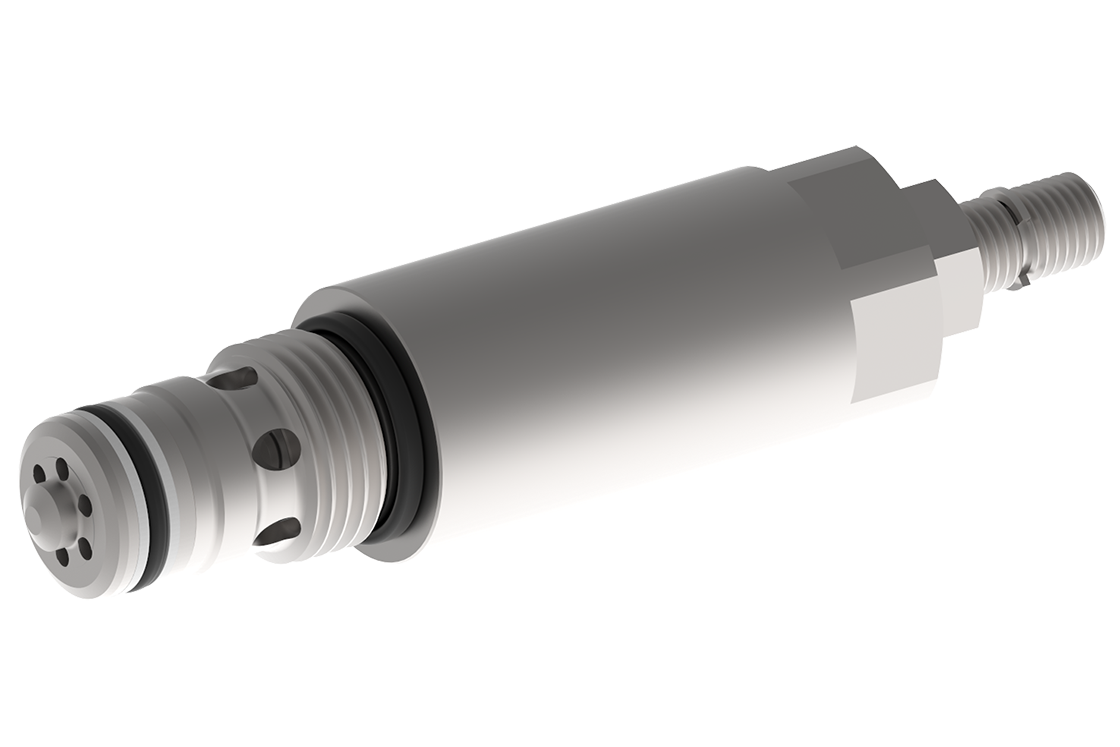

Direct Acting and Two-stage Pressure Relief Valves

Direct Acting and Two-stage Pressure Relief Valves
Symbol Type Q max.
l/min		 P max.
bar		 Operation Cavity type Thread Data sheet Data sheet
DVSA-1L… 1.5 420 prop. solenoid AL 3/4-16 UNF DVS-1-1_400-P-580101-en
DVSA-1LG… 1.5 420 prop. solenoid AL 3/4-16 UNF DVS-1G-1_400-P-580201-en
WUVB-1LO… 1.5 420 solenoid AL 3/4-16 UNF WUV-1-1_400-P-287101-en
DDPC-1L… 30 420 hand adjustment AL 3/4-16 UNF DDP-1-4_400-P-260111-en
DBDSB-1L… 24 300 prop. solenoid AL 3/4-16 UNF DBDS-1-4_400-P-585301-en
DBDSB-1LG… 24 300 prop. solenoid AL 3/4-16 UNF DBDS-1G-4_400-P-585401-en
DBDTC-1L… 24 400 prop. solenoid AL 3/4-16 UNF DBDT-1-4_400-P-585111-en
DBDTC-1LG… 24 400 prop. solenoid AL 3/4-16 UNF DBDT-1G-4_400-P-585211-en
DBVSA-1LG… 60 300 prop. solenoid AL 3/4-16 UNF DBVS-1G-5_400-P-586101-en
DBVSA-1CG… 120 300 prop. solenoid DC M24 x 1,5 DBVS-1G-10_400-P-587101-en
DVPSA-3BG… 350 350 prop. solenoid EB M42 x 2 DVPS-3G-16_400-P-581651-en
DVPSA-3D… 120 315 prop. solenoid DD M24 x 1,5 DVPS-3-10_400-P-581401-en
DVPSB-3B… 350 350 prop. solenoid EB M42 x 2 DVPS-3-16_400-P-581601-en
DVPA-RV-1… 100 350 hand adjustment DC M24 x 1,5 DVP-RV-1-10-DC_400-P-280131-en DVP-RV-1-10-DC_400-P-280131-us
DVPA-RV-3… 100 350 hand adjustment DC M24 x 1,5 DVP-RV-3-10-DD_400-P-280141-en DVP-RV-3-10-DD_400-P-280141-us
WUVPO/LC-1… 140 350 solenoid DC M24 x 1,5 WUVP-1-10_400-P-290101-en
WUVPO/LC-2… 140 350 solenoid DD M24 x 1,5 WUVP-2-10_400-P-290111-en
WUVPO/LC-3… 140 350 solenoid DD M24 x 1,5 WUVP-3-10_400-P-290121-en
WUVPB-1… 350 420 solenoid EB M42 x 2 WUVP-1-16_400-P-295301-en
WUVPB-2… 350 420 solenoid EB M42 x 2 WUVP-2-16_400-P-295311-en
WUVPB-3… 350 420 solenoid EB M42 x 2 WUVP-3-16_400-P-295321-en
DVPA-1… 140 350 hand adjustment DC M24 x 1,5 DVP-1-10-DC_400-P-280101-en DVP-1-10-DC_400-P-280101-us
DVPA-2… 140 350 hand adjustment DD M24 x 1,5 DVP-2-10-DD_400-P-280111-en DVP-2-10-DD_400-P-280111-us
DVPA-3D-10-… 140 350 hand adjustment DD M24 x 1,5 DVP-3-10-DD_400-P-280121-en DVP-3-10-DD_400-P-280121-us
DVPB-1… 350 420 hand adjustment EB M42 x 2 DVP-1-16-EB_400-P-285301-en DVP-1-16-EB_400-P-285301-us
DVPB-2… 350 420 hand adjustment EB M42 x 2 DVP-2-16-EB_400-P-285311-en DVP-2-16-EB_400-P-285311-us
DVPB-3… 350 420 hand adjustment EB M42 x 2 DVP-3-16-EB_400-P-285321-en DVP-3-16-EB_400-P-285321-us
DDPSVA-1 100 330 hand adjustment   DDPSV-1-10_400-P-273101-en
DDPB-1C… 140 450 hand adjustment DC M24 x 1,5 DDP-1-10_400-P-270101-en
DDPB-3D… 140 450 hand adjustment DD M24 x 1,5 DDP-3-10_400-P-270201-en
DVP 20 330 450 hydraulic   DVP-20_300-P-9050068-en
UVP 4 20 500 hydraulic   UVP-4_300-P-9050065-en
RVDI-08 22 350 hydraulic BH/C0820 3/4-16 UNF RVDI-08_520-P-030610-en
DDPDB-3D… 140 450 hand adjustment DD M24 x 1,5 DDPD-3-10_400-P-271101-en
RVBD-08 37 350 hand adjustment BH/C0820 3/4-16 UNF RVBD-08_520-P-030510-en
RVBD-10 75 350 hand adjustment AX/C1020 7/8-14 UNF RVBD-10_520-P-030520-en
