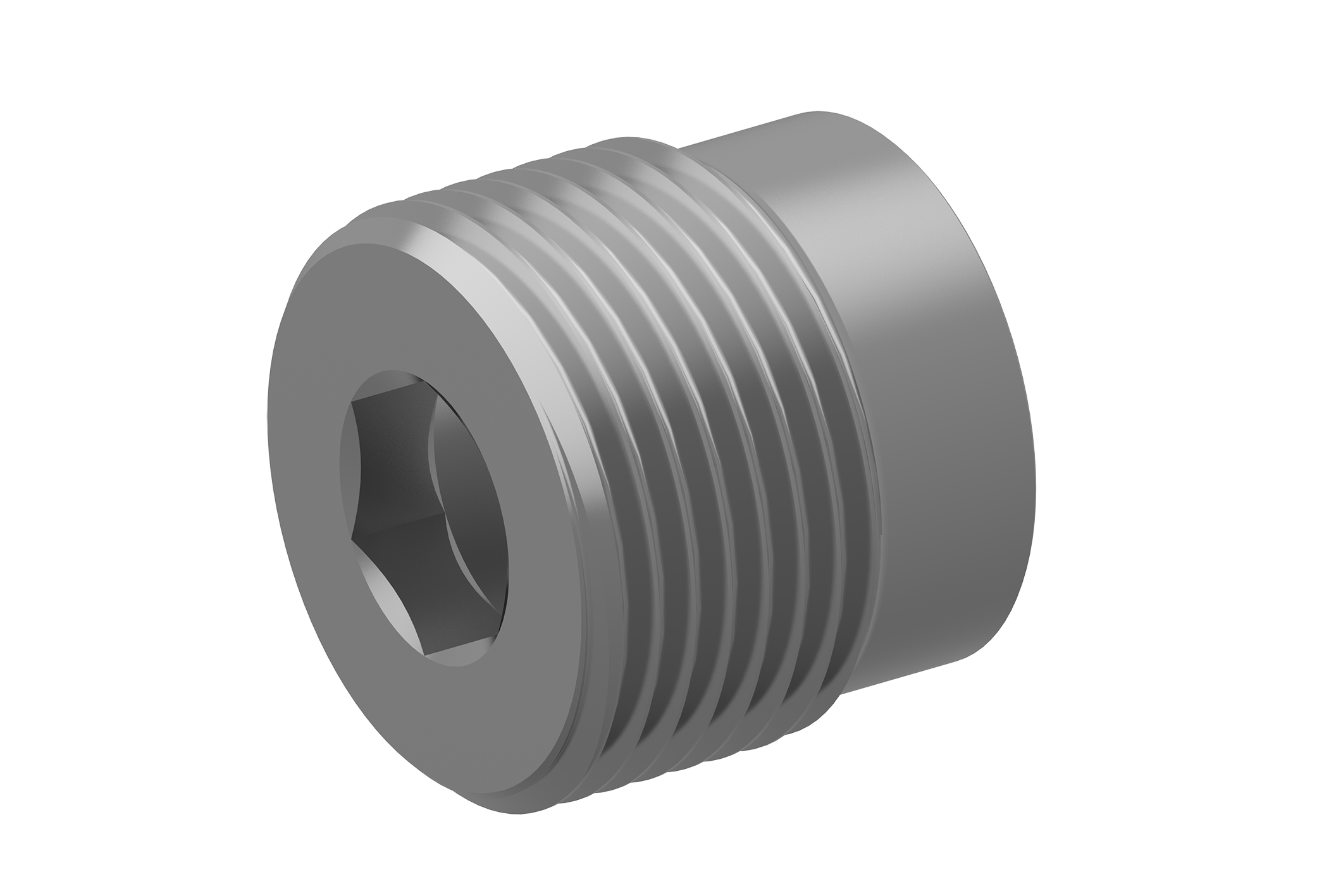

Threaded Mounting Sleeves ESH…

The push-in RKVC-… cartridge valve can be used in conjunction with an ESH threaded mounting sleeve like a screw-in valve.

Threaded Mounting Sleeves ESH…
Type Nominal sizes
 Thread Type
ESH-G-06 06 G 1/4” RKVC-04-…
ESH-G-08 08 G 3/8” RKVC-06-…
ESH-G-10 10 G 1/2” RKVC-08-…
ESH-G-16 16 G 3/4” RKVC-10-…
ESH-G-25 25 G 1” RKVC-16-…
ESH-G-32 32 G 1 1/4” RKVC-25-…
ESH-G-40 40 G 1 1/2” RKVC-32-…
ESH-G-50 50 G 2” RKVC-40-…
  Type File extension Size
ESH-G-06_170-P-060110-en Catalog / Data sheet PDF 542.5 KB
ESH-G-08_170-P-060111-en Catalog / Data sheet PDF 543.6 KB
ESH-G-10_170-P-060112-en Catalog / Data sheet PDF 542.0 KB
ESH-G-16_170-P-060113-en Catalog / Data sheet PDF 543.2 KB
ESH-G-25_170-P-060114-en Catalog / Data sheet PDF 543.1 KB
ESH-G-32_170-P-060115-en Catalog / Data sheet PDF 542.8 KB
ESH-G-40_170-P-060116-en Catalog / Data sheet PDF 543.9 KB
ESH-G-50_170-P-060117-en Catalog / Data sheet PDF 545.1 KB
